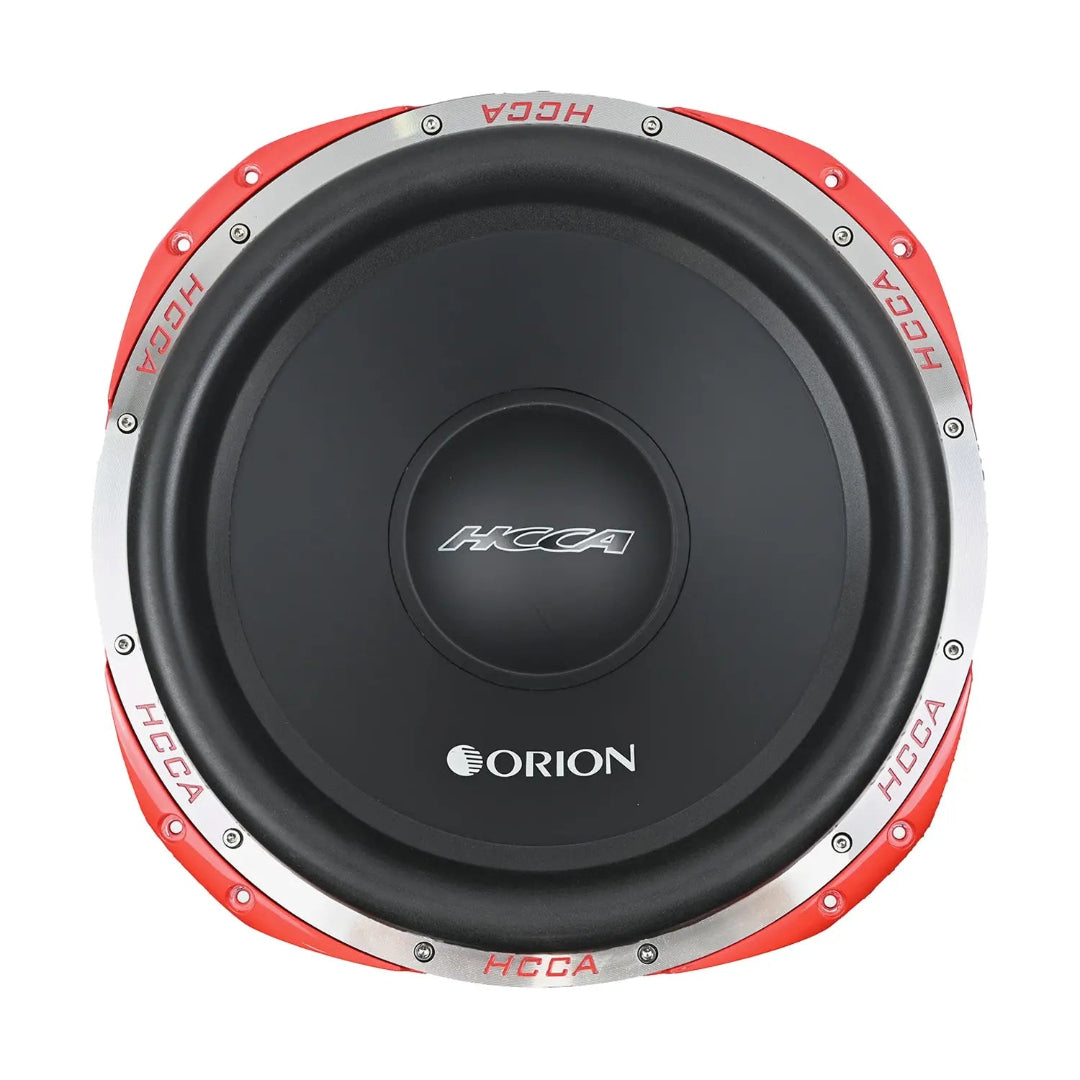

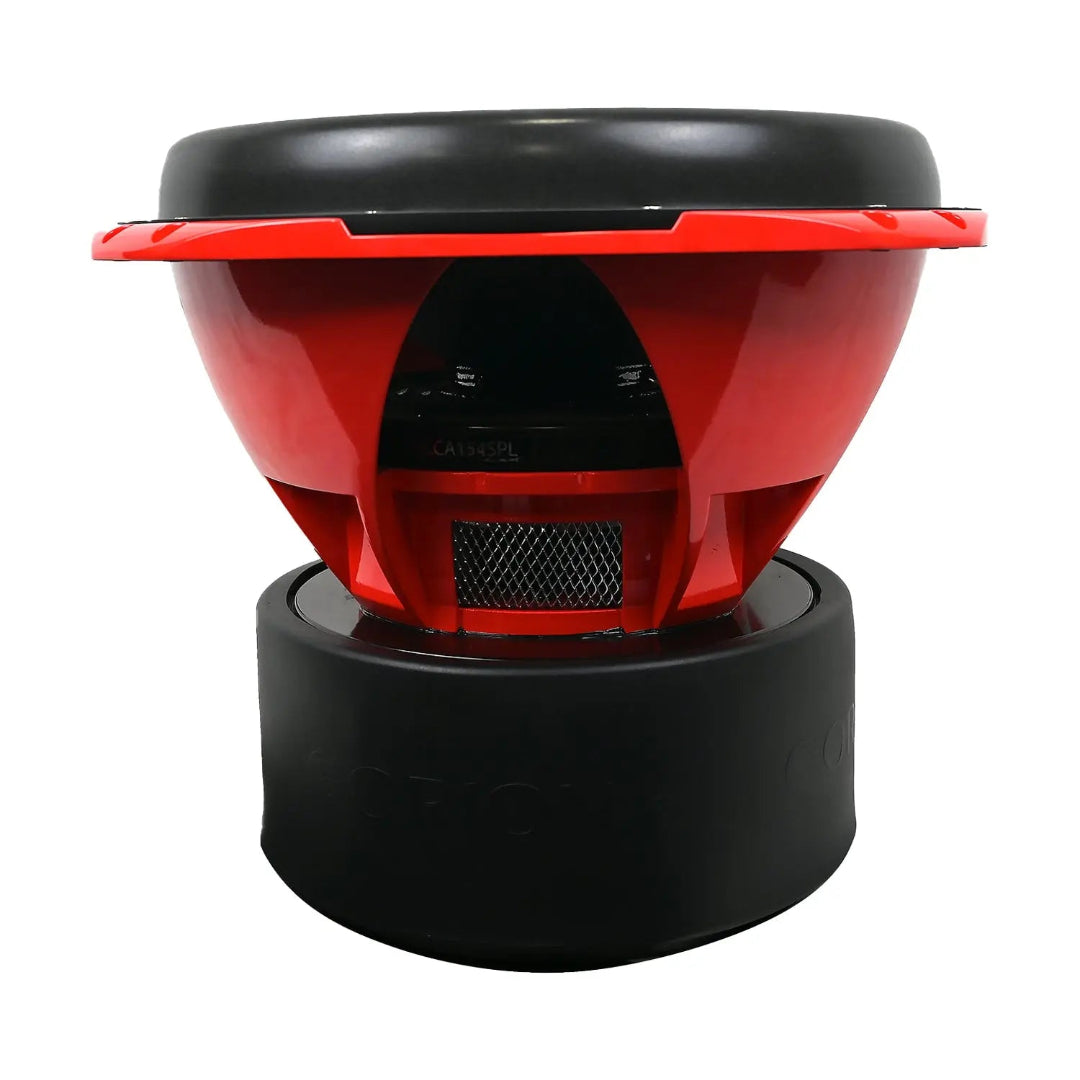

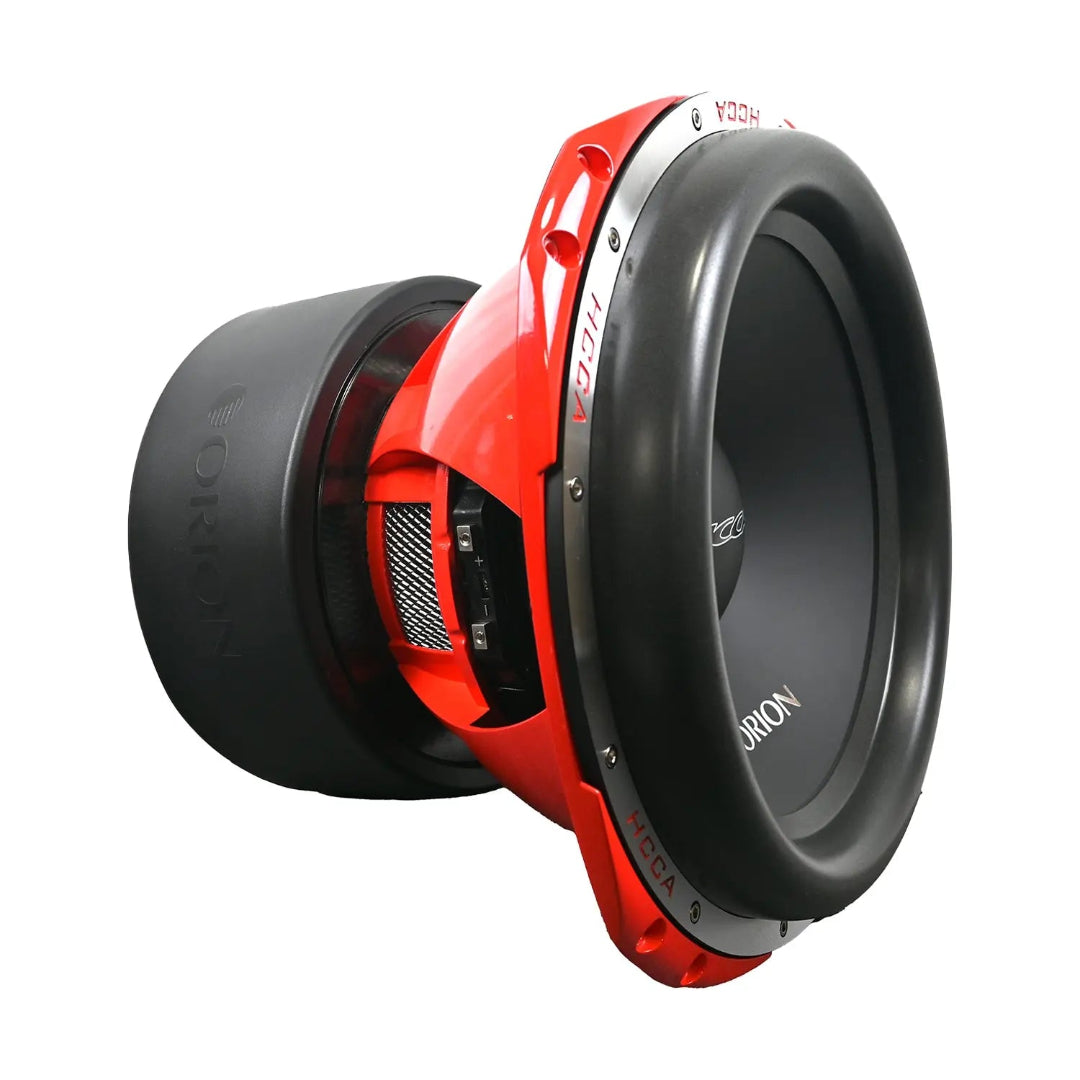

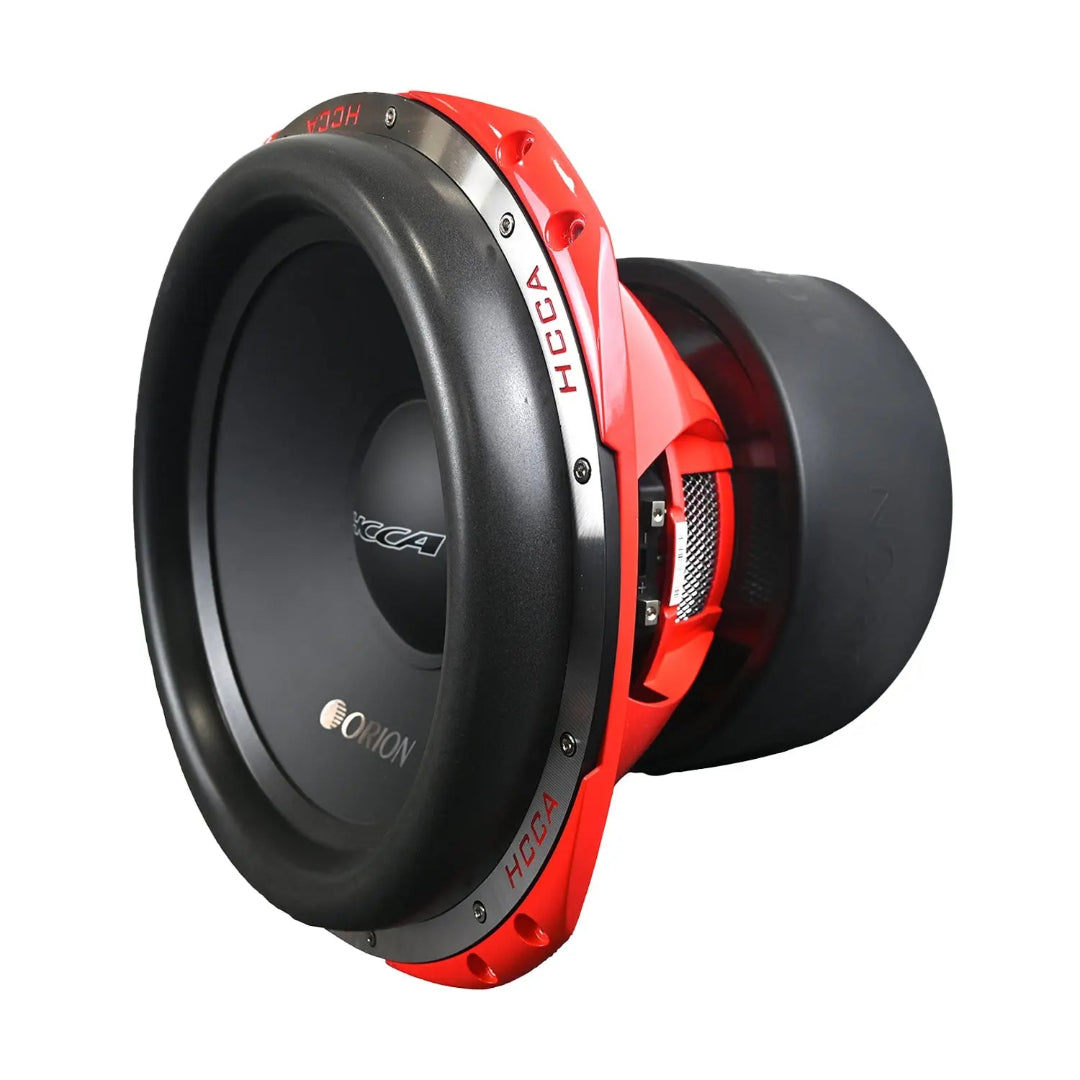

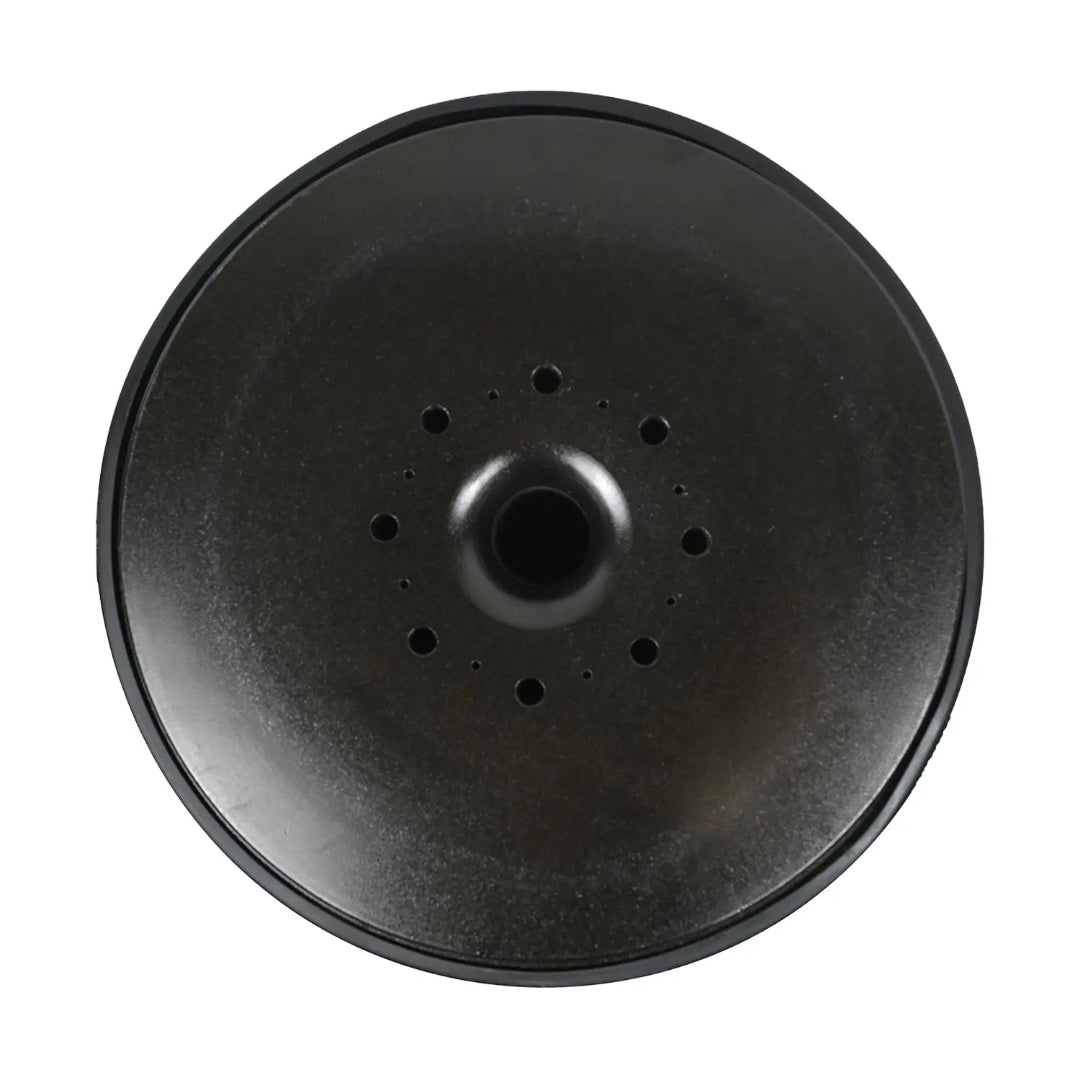

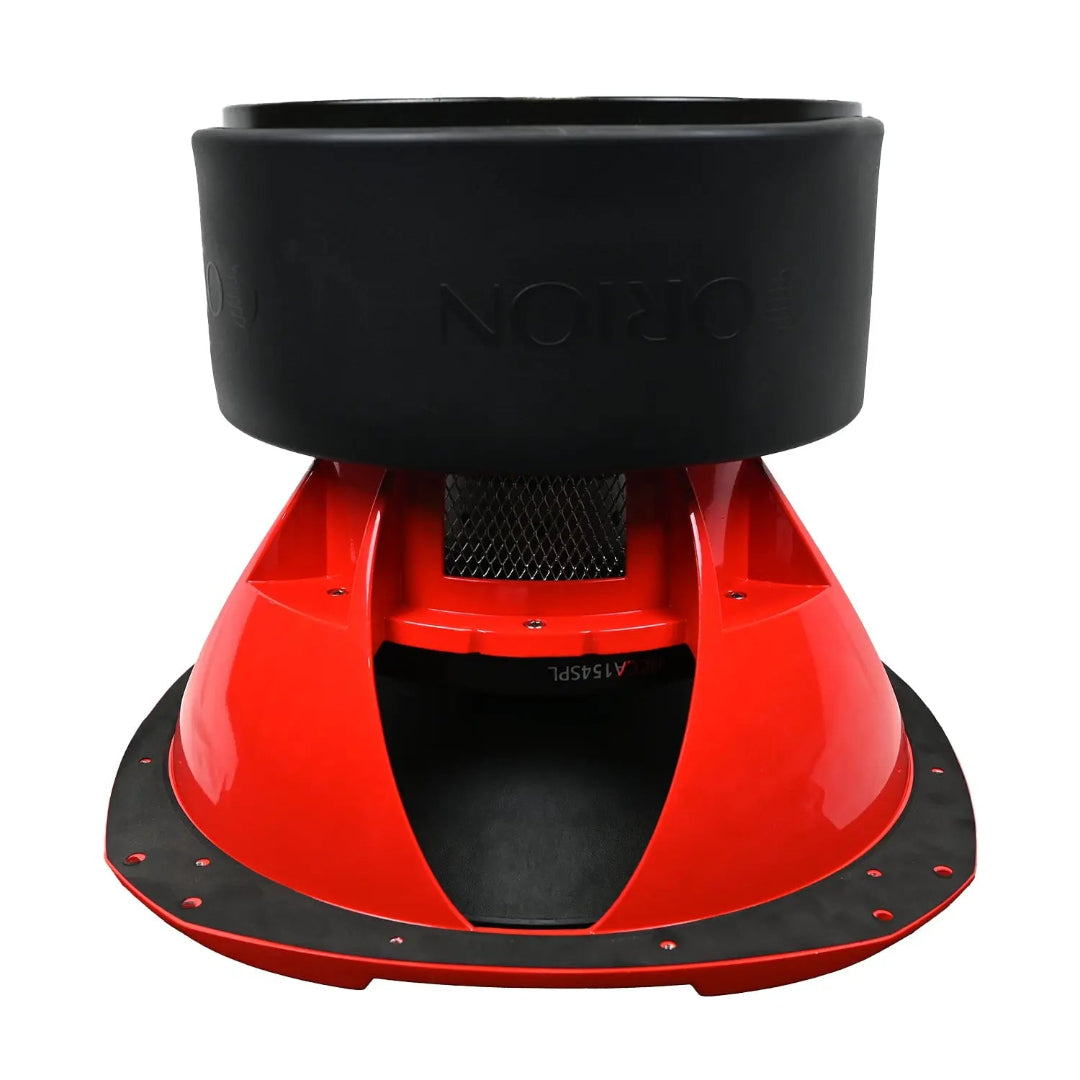

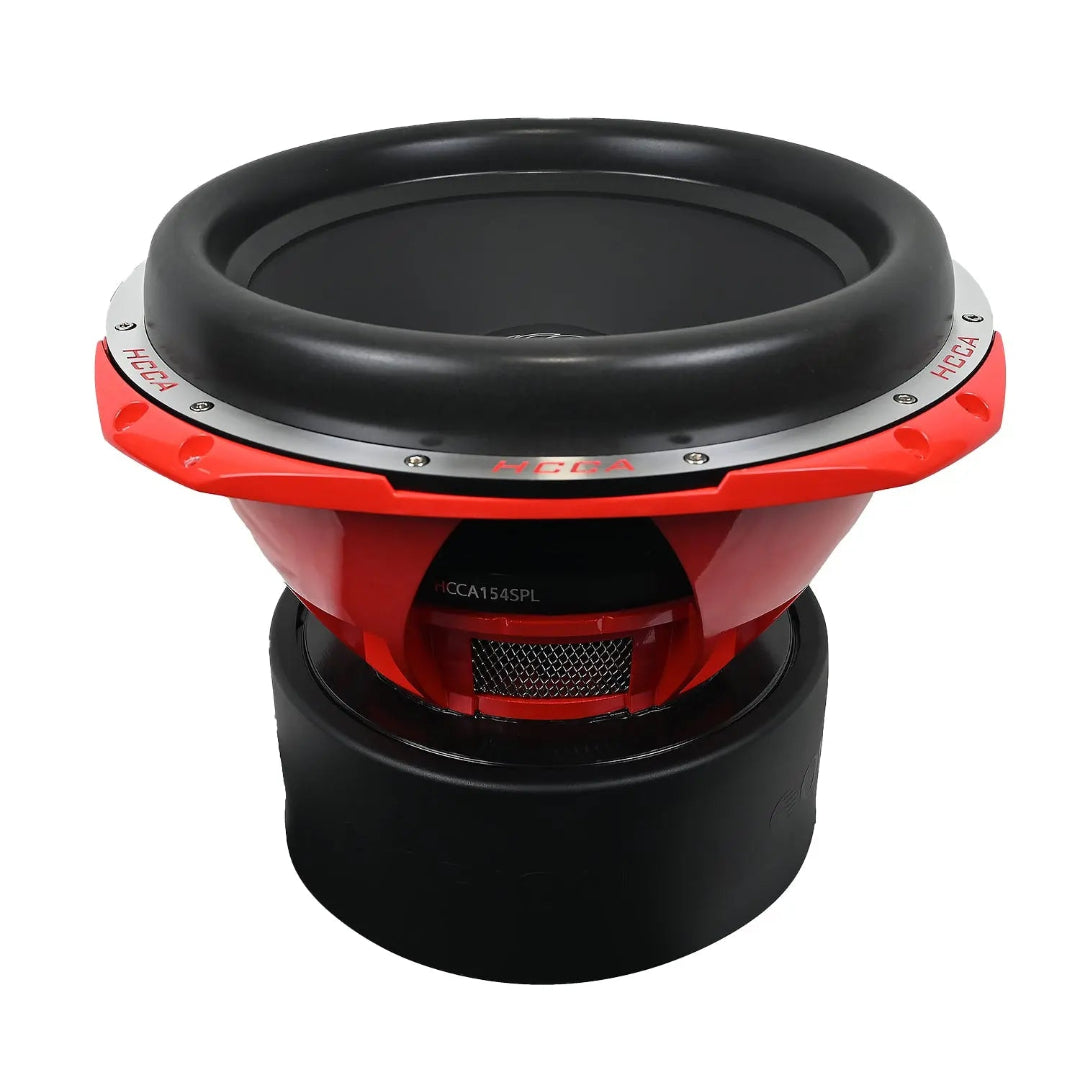

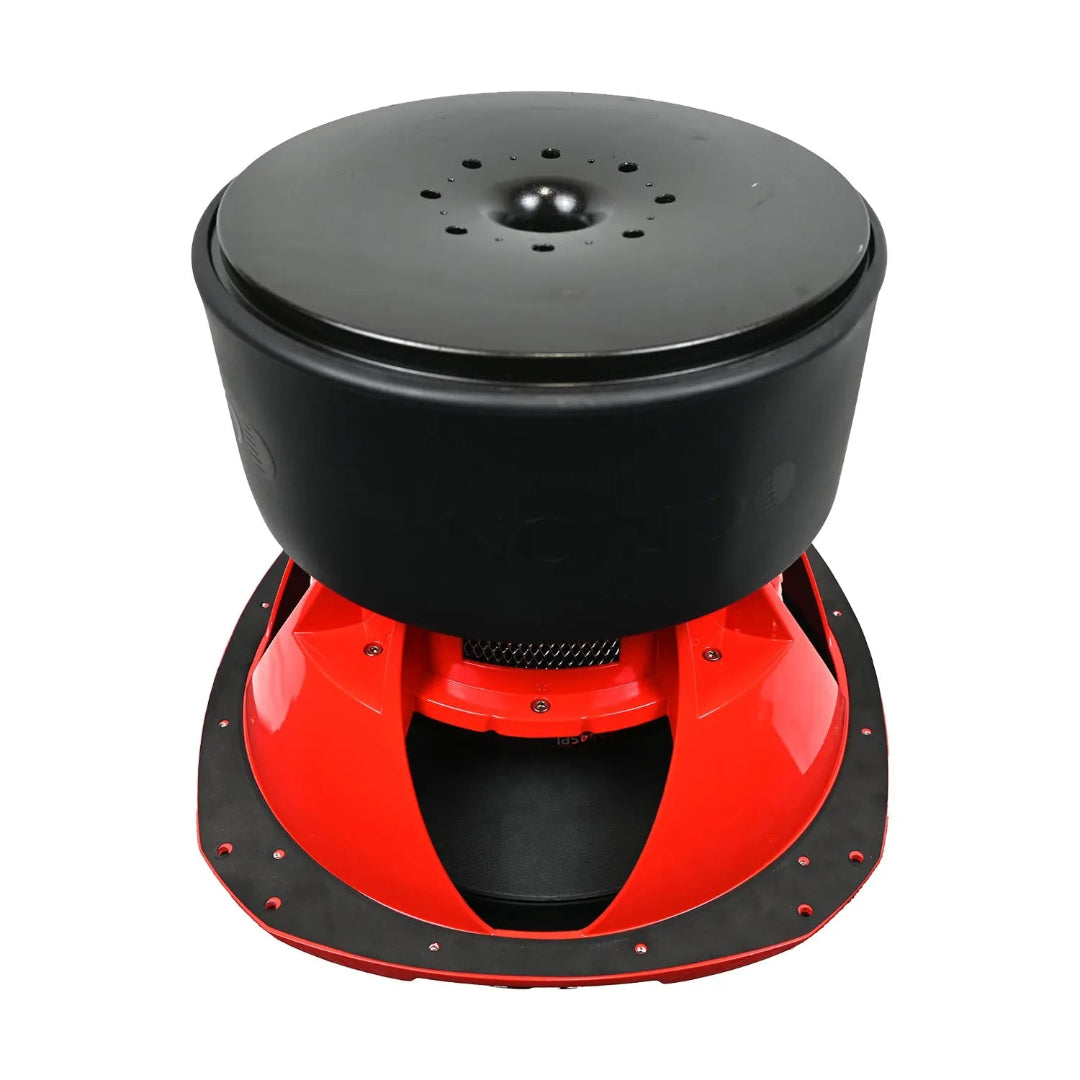

Orion HCCA151SPL – 15 Inch Dual 1 Ohm SPL Subwoofer | 5000W RMS Extreme Bass Power

Competition-Grade 15 Inch Subwoofer Built for Maximum SPL Output | Best Subwoofer for Car

The Orion HCCA151SPL is engineered for extreme sound pressure levels. Specifically, this 15 inch dual 1 ohm SPL competition subwoofer delivers massive low-frequency output designed for record-breaking bass builds. As a result, it excels in high-power SPL systems where output is the priority. With 5000W RMS and 20000W peak power, it is built to handle brutal power levels without compromise.

Additionally, the dual 1-ohm voice coil configuration allows ultra-low impedance wiring. Because of this, it pairs perfectly with high-output competition amplifiers. Therefore, the HCCA151SPL is ideal for SPL competitions, demo vehicles, and extreme bass walls.

Built for Extreme SPL Abuse

To survive extreme output, the HCCA151SPL uses a moisture- and UV-resistant paper cone. Moreover, it features a reinforced NBR foam surround that supports massive cone movement. Together, these components help maintain control during violent excursion.

At its core, the subwoofer uses a huge 4-inch high-temperature voice coil. As a result, it handles intense power and heat during competition runs. In addition, a 690 oz triple-stack ceramic magnet motor structure delivers enormous motor force. This design maximizes efficiency and output at extreme power levels.

Ideal For

• SPL competition vehicles
• Extreme bass demo builds
• Multi-subwoofer bass walls
• High-voltage, high-power audio systems

Key Features

• 15 inch dual 1 ohm SPL competition subwoofer
• 5000W RMS / 20000W peak power handling
• Massive 4” high-temperature voice coil
• Moisture- and UV-resistant paper cone
• Reinforced NBR foam surround
• Polypropylene dustcap for added cone strength
• Huge 690 oz triple-stack ceramic magnet
• Designed specifically for extreme SPL output
• Optimized for competition-style enclosures
• Legendary Orion Car Audio HCCA SPL Series engineering

• Extreme Competition Power: The Orion HCCA151SPL subwoofer is engineered to handle extreme competition power levels with an impressive RMS power handling of 5000 Watts and a peak power handling of 20000 Watts.
• Dual 1-ohm Configuration: Featuring a dual 1 ohm voice coil setup, this subwoofer provides versatile wiring options to achieve low impedance and maximum power delivery.
• Precision Sound Reproduction: The non-pressed paper cone and NBR rubber surround ensure precise sound reproduction, capable of handling extreme power levels while maintaining accuracy.
• Unmatched Performance: With a voice coil diameter of 4 inches, this subwoofer is designed to excel under the most demanding audio conditions, making it an ideal choice for competition setups.
• High-Quality Components: The subwoofer features a high-quality magnet structure, advanced cooling, and durable materials to ensure reliable and consistent performance even during prolonged use.

• Subwoofer Size: 15" (Inches)
• Voice Coil Configuration: Dual 1-ohm
• Power Handling (Peak): 20000 Watts
• Power Handling (RMS): 5000 Watts
• Sensitivity: 86.02 dB
• Frequency Response: 21 Hz - 100 Hz
• Voice Coil Diameter: 4" (Inches)
• Dustcap Material: Polypropylene
• Cone Material: Moisture and UV Resistant Paper Cone
• Surround Material: NBR Foam
• Magnet Information: 690 Oz Triple Stack Ceramic
• Mounting Depth: 306mm / 12.05 (Inches)
• Cutout Diameter: 383mm / 15.07 (Inches)
• Overall Diameter: 422mm / 16.61 (Inches)
