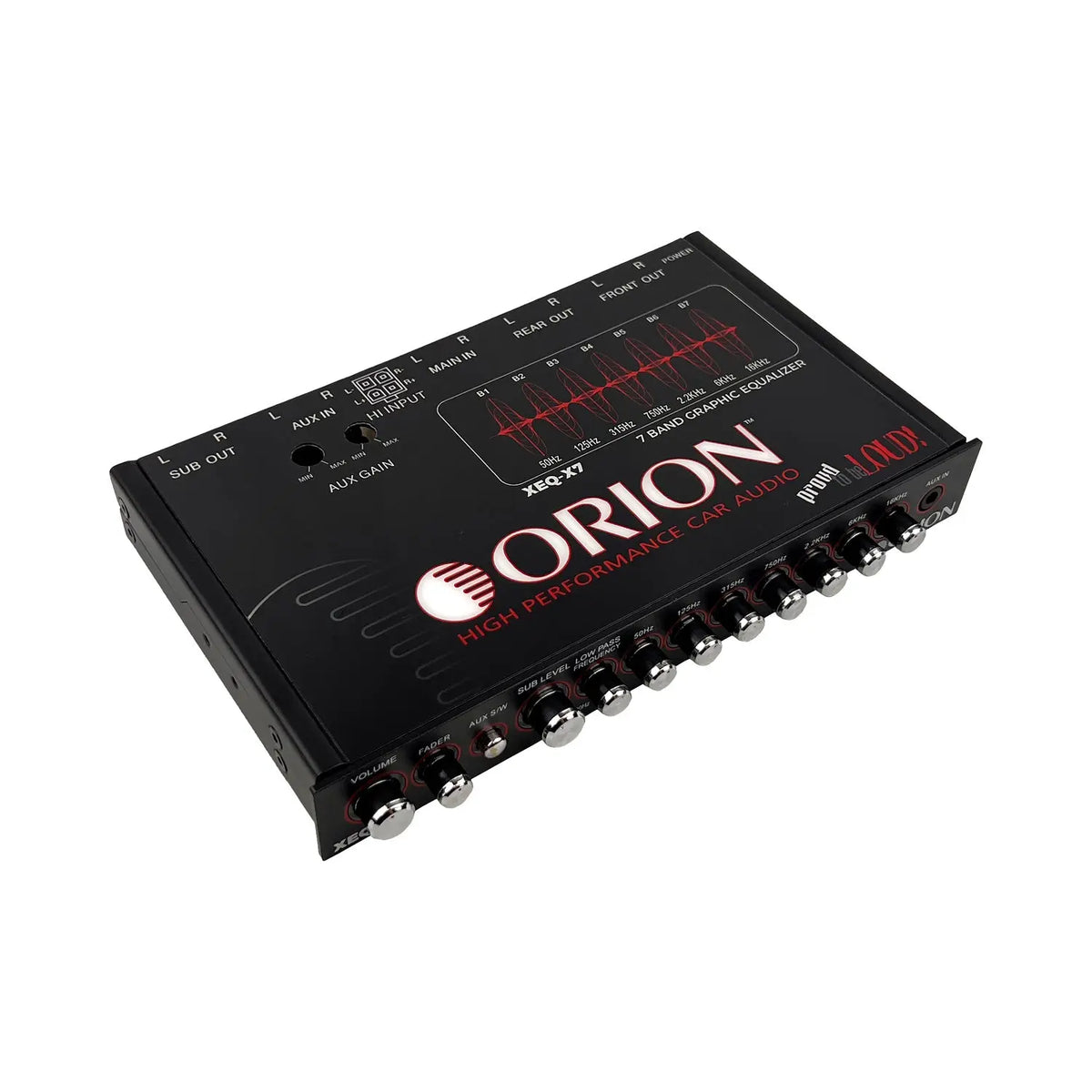

XEQ-X7

The XTR XEQ-X7 is a 7-band graphic equalizer that elevates your car audio experience, giving you precise control over the sound spectrum. Equipped with front AUX and high-level inputs, this equalizer allows for versatile connectivity options, enabling direct connection to various audio sources. Each of the seven adjustable bands allows for fine-tuning of audio frequencies, ensuring that you can shape the sound to match your personal taste and the acoustics of your vehicle.

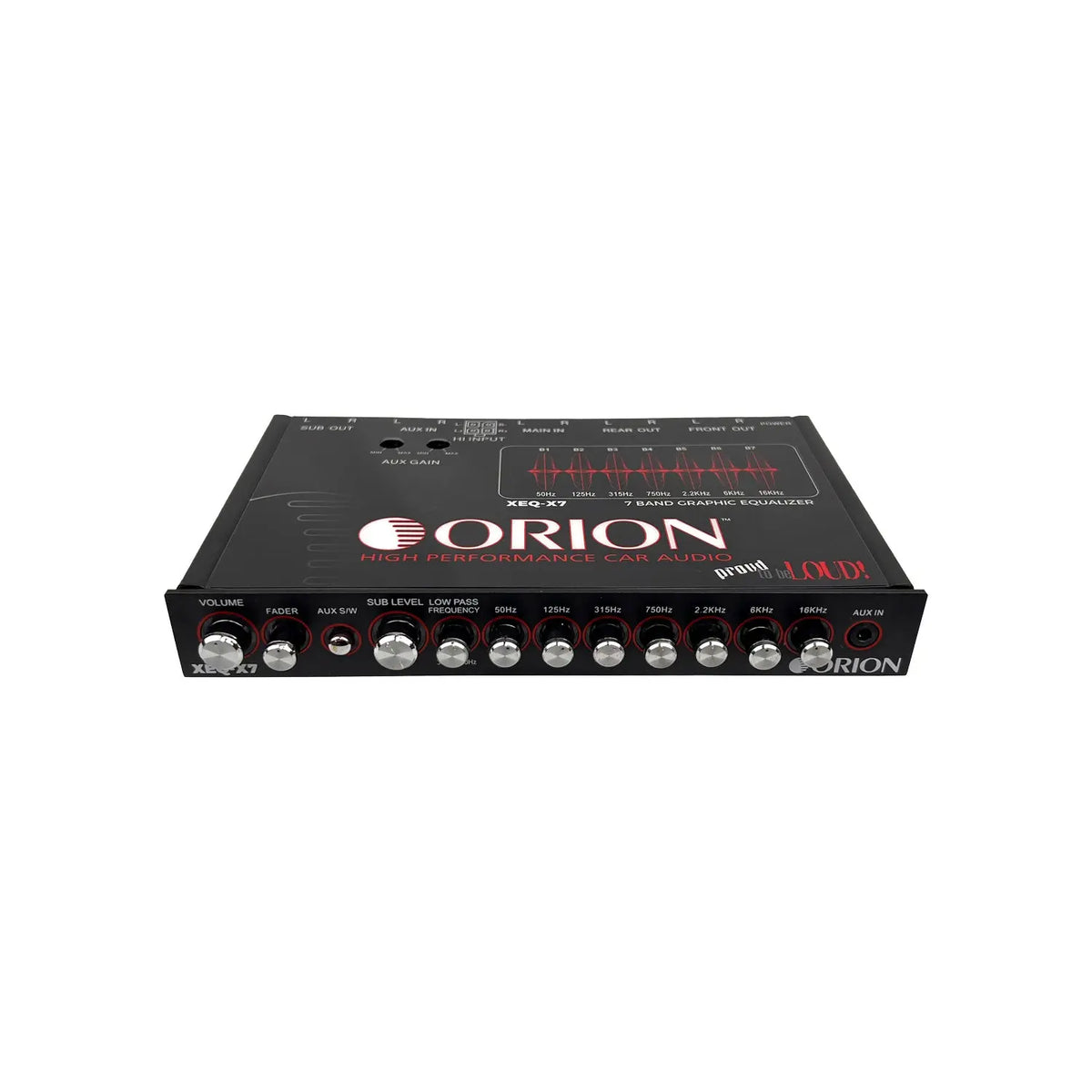

The XEQ-X7 features a user-friendly interface with adjustable knobs for each frequency band, making adjustments both intuitive and effective. This equalizer not only enhances the quality of your audio but also compensates for any acoustic deficiencies in the vehicle’s environment, providing a clearer, more balanced sound.

Constructed with durability in mind, the XTR XEQ-X7 is built to withstand the rigors of in-car use while maintaining its functional and aesthetic qualities. Whether you're looking to perfect your sound system's output or need a reliable way to integrate various audio sources, the XTR XEQ-X7 offers the control and quality needed to transform your vehicle into a finely-tuned audio environment.

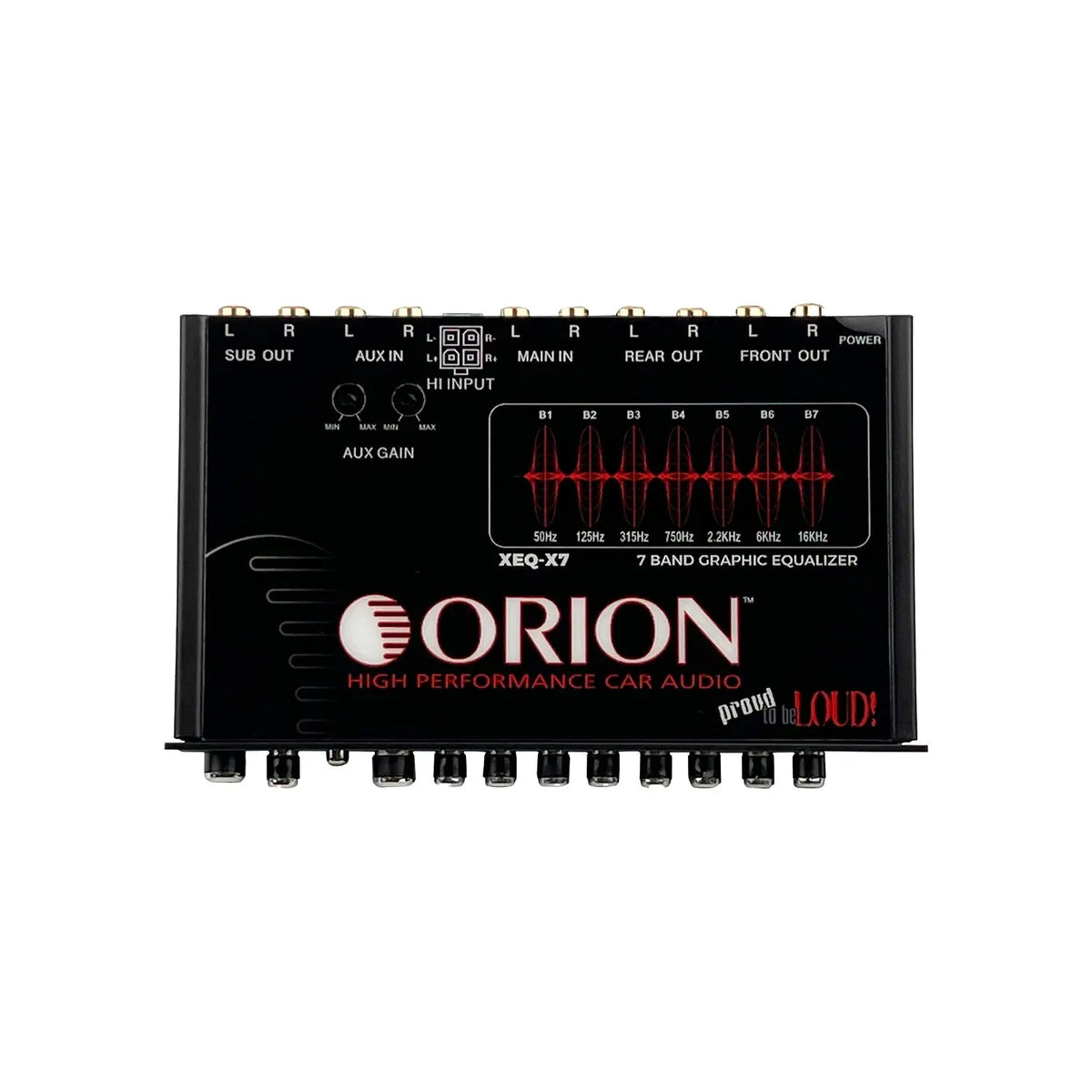

• Flexible Equalization: Offers seven adjustable bands (50Hz, 125Hz, 315Hz, 750Hz, 2.2kHz, 6kHz, 16kHz) with each frequency capable of a -12 to +12dB adjustment range, allowing for personalized audio tuning.

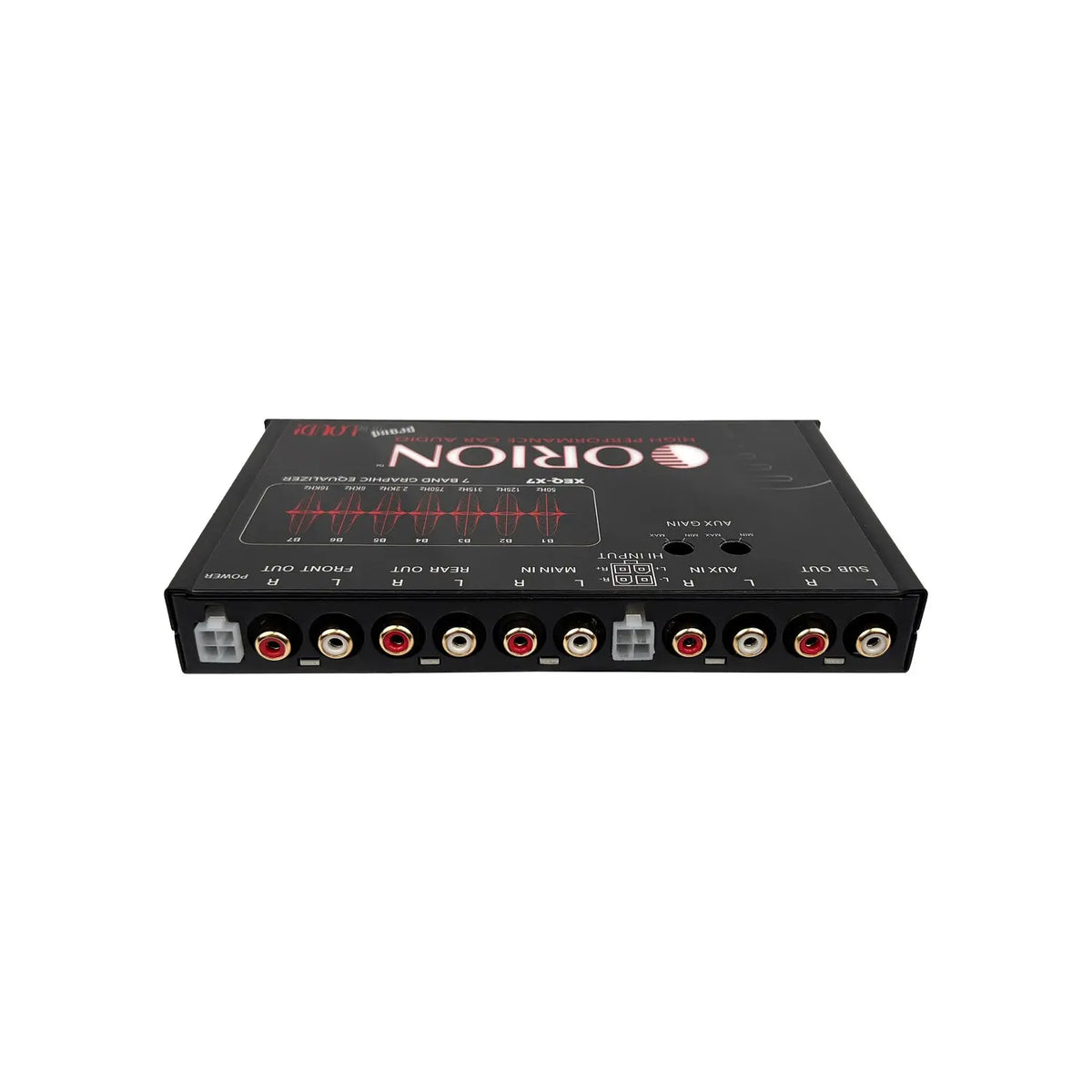

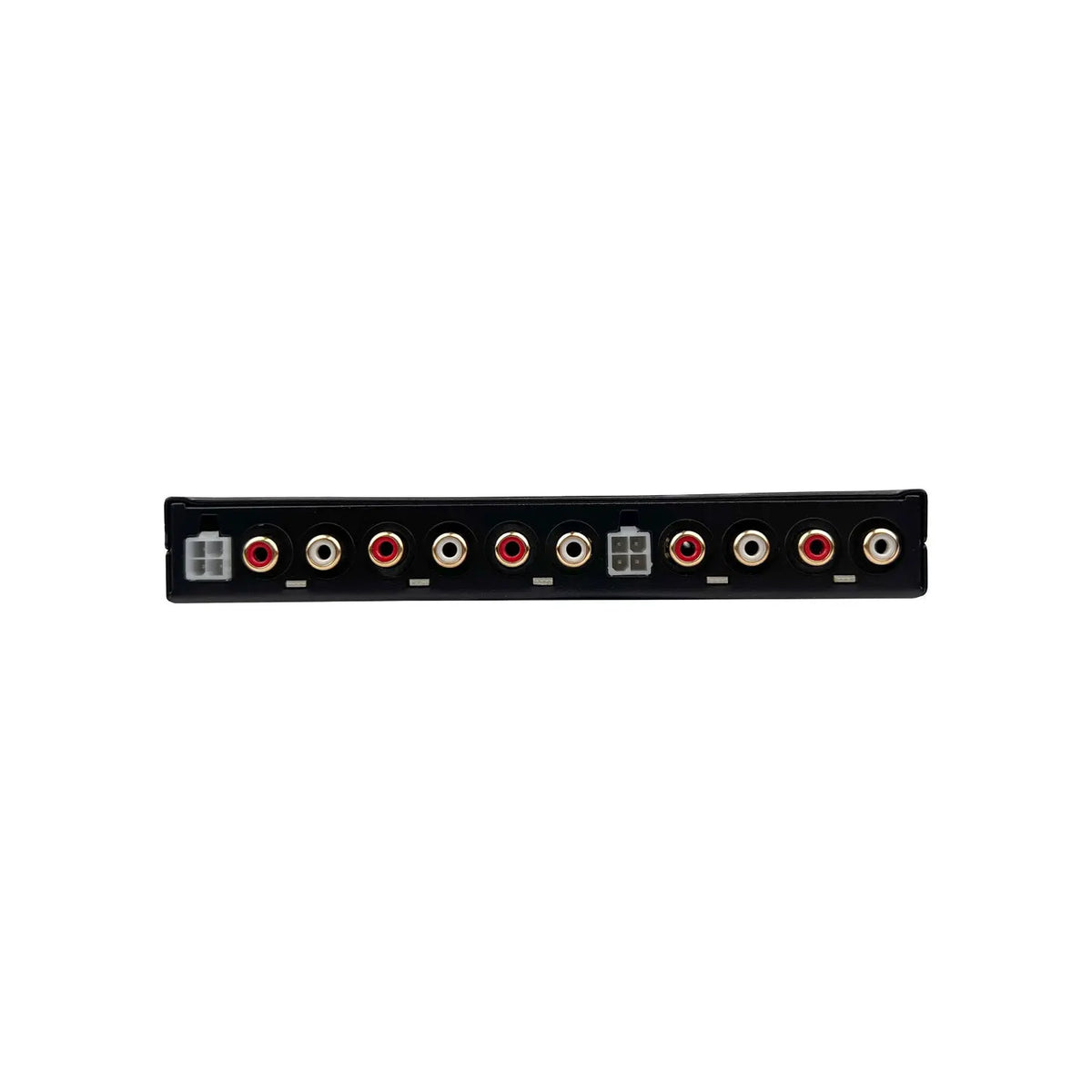

• Multiple Connectivity Options: Includes three stereo RCA outputs for connecting front, rear, and subwoofer amplifiers, along with an auxiliary stereo RCA input and a front panel 3.5mm input for easy connection to portable devices.

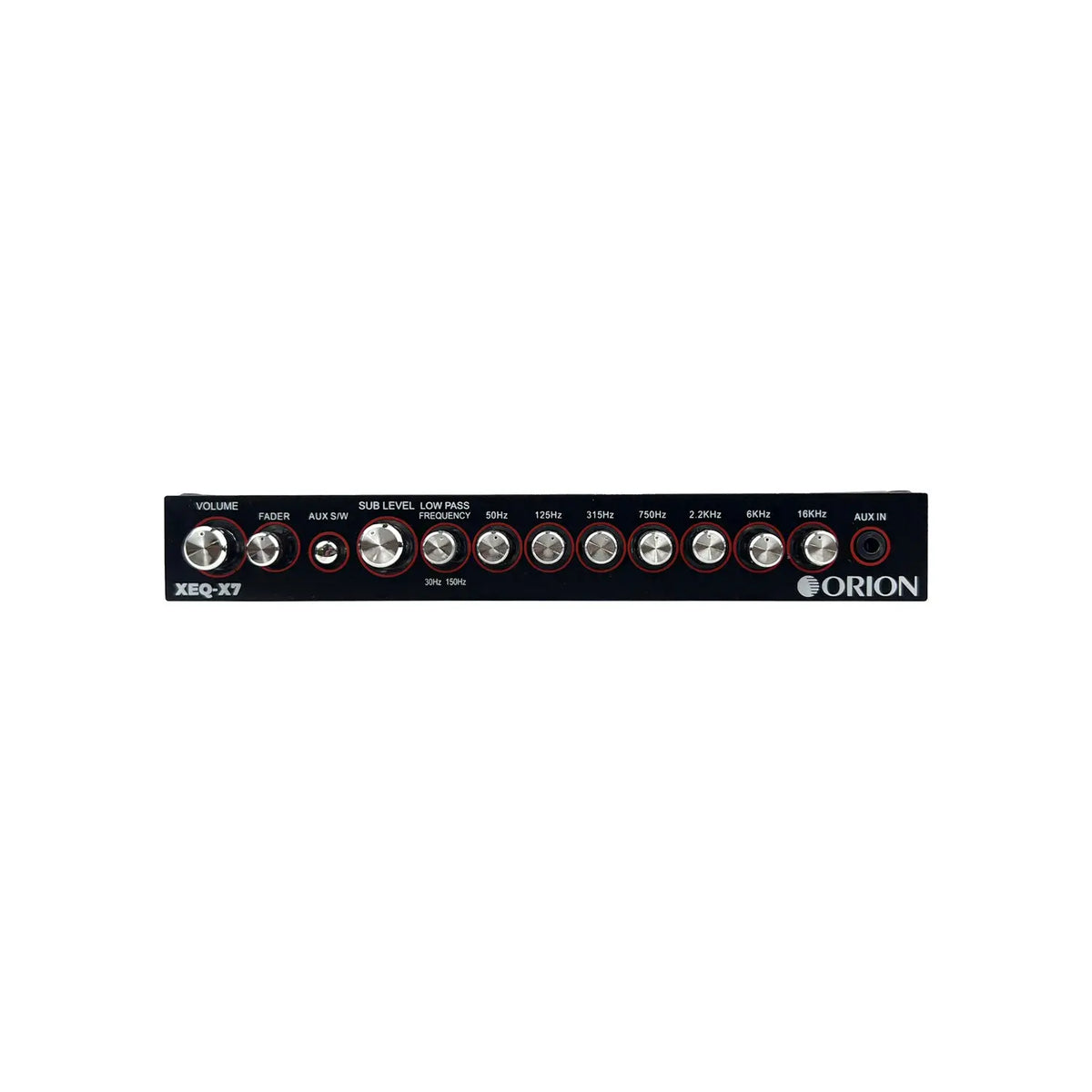

• Versatile Controls: Features separate controls for master volume, subwoofer volume, front/rear fader, and easy switching between main and auxiliary inputs.
• Superior Sound Quality: Boasts an extended frequency response from 20Hz to 30kHz and a remarkable 100dB signal-to-noise ratio, ensuring crystal-clear sound.
• High-Quality Connections: Equipped with gold-plated RCA connectors to provide the best possible audio signal output and high-level speaker inputs for seamless integration with factory radios.
• Custom Installation: Designed with ISO mounting holes and a removable trim ring to facilitate custom installs.

• Frequencies: 50Hz, 125Hz, 315Hz, 750Hz, 2.2kHz, 6kHz, 16kHz
• Boost/Cut Range: ±12dB
• Signal-to-Noise Ratio (S/N): 83dB
• Frequency Response: 8Hz - 140kHz +/-1dB
• Maximum Output Voltage: 8V
• Total Harmonic Distortion (THD): 0.01%
• Input Sensitivity (RCA): <3.6V
• Input Sensitivity (High): <10.8V
• Input Impedance: 20K Ohms
• Output Impedance: 1K Ohms
• Stereo Separation: 73dB at 1kHz
• Operating Voltage: 11V - 15V (negative ground)
• Dimensions (Width x Depth x Height): 7” x 4.25” x 1”
