Orion HCCA122 – 12 Inch Dual 2 Ohm High-Performance Subwoofer | 2500W RMS Bass Power
High-Performance 12 Inch Subwoofer for Deep, Controlled Bass
The Orion HCCA122 delivers powerful and controlled bass for high-performance car audio systems. Specifically, this 12 inch dual 2 ohm high-power subwoofer produces deep low frequencies with strong control and consistency. As a result, it performs well in demanding daily-driven builds. With 2500W RMS and 10000W peak power, it offers massive output while maintaining sound quality and reliability.
Additionally, the dual 2-ohm voice coil configuration provides flexible wiring options. Because of this, matching amplifier loads becomes easier in high-power systems. Therefore, the HCCA122 fits enthusiast-level builds, high-output daily systems, and advanced custom installs.
Built for Power, Control, and Durability
To support extreme output, the HCCA122 uses a moisture- and UV-resistant paper cone. Moreover, it features a durable NBR foam surround. Together, these components allow strong cone movement while keeping bass tight and controlled.
At its core, the subwoofer uses a massive 4-inch high-temperature voice coil. As a result, it manages heat more effectively during extended high-power use. In addition, a 445 oz triple-stack ceramic magnet motor structure delivers exceptional motor force and stability. This design helps maintain clean and consistent bass even at higher power levels.
Ideal For
- High-performance daily-driven audio systems
- Enthusiast-level bass builds
- Multi-subwoofer setups requiring strong low-end control
- Custom car audio systems with high power demands
Key Features
- 12 inch dual 2 ohm high-performance subwoofer
- 2500W RMS / 10000W peak power handling
- 4” high-temperature voice coil for improved heat control
- Moisture- and UV-resistant paper cone
- NBR foam surround for controlled excursion
- Polypropylene dustcap for added cone strength
- Massive 445 oz triple-stack ceramic magnet
- Designed for high-output performance systems
- Optimized for sealed and ported enclosures
- Proven Orion Car Audio HCCA Series engineering
No features provided.
- Subwoofer Size: 12" (Inches)
- Voice Coil Configuration: Dual 2-ohm
- Power Handling (Peak): 10000 Watts
- Power Handling (RMS): 2500 Watts
- Sensitivity: 84.22 dB
- Frequency Response: 24 Hz - 100 Hz
- Voice Coil Diameter: 4" (Inches)
- Dustcap Material: Polypropylene
- Cone Material: Moisture and UV Resistant Paper Cone
- Surround Material: NBR Foam
- Magnet Information: 445 Oz Triple Stack Ceramic
- Mounting Depth: 261mm / 10.28 (Inches)
- Cutout Diameter: 292mm / 11.5 (Inches)
- Overall Diameter: 324.5mm / 12.78 (Inches)
HCCA SERIES
High-quality sound with robust power and durability
Customer Reviews
Overall rating: 4.8 / 5 from 5 reviews.

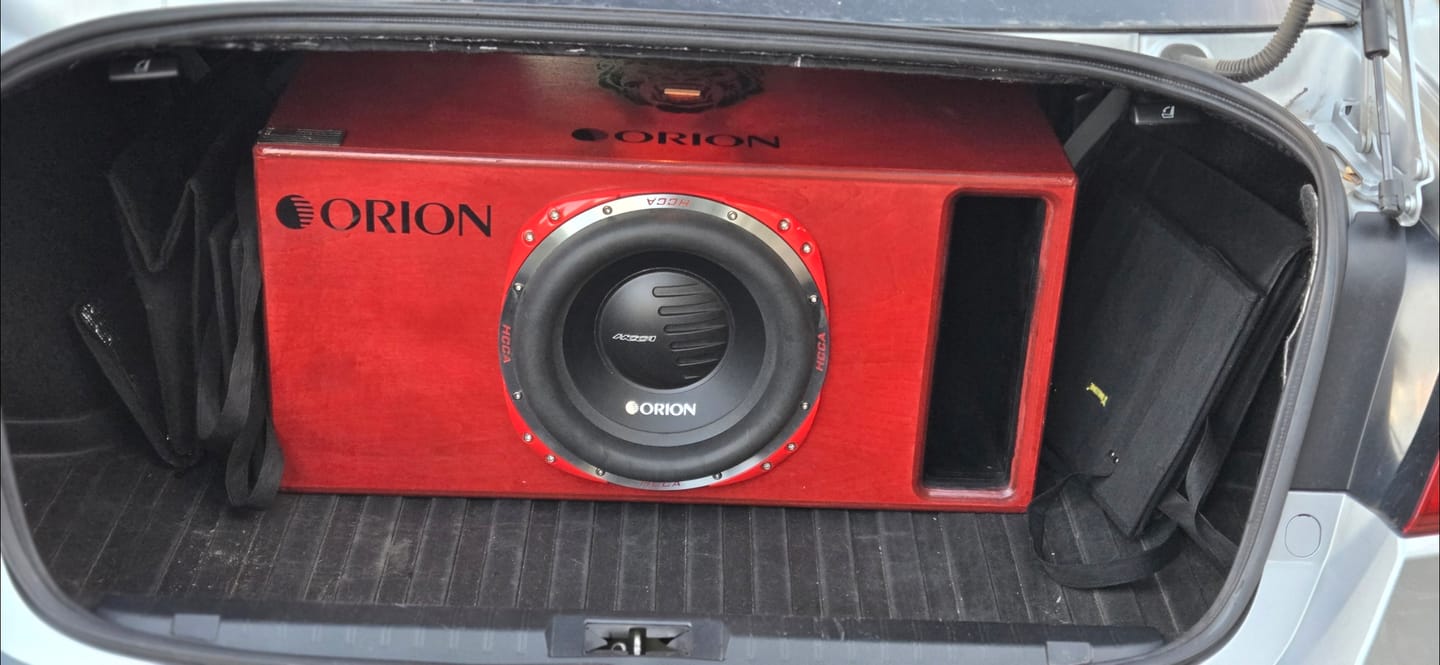

In the right box this thing Is a beast .
Awesome speaker 🔊 👏
Sounds amazing good power
Well I opened 1 sub and it was new the second one was used contacted Orion they sent the return label and sent the used one and got a new happy with there’s service there on top of it sent receipts shipping info and the used sub got replaced good job Orion will buy buying more of your products in the future thank you
