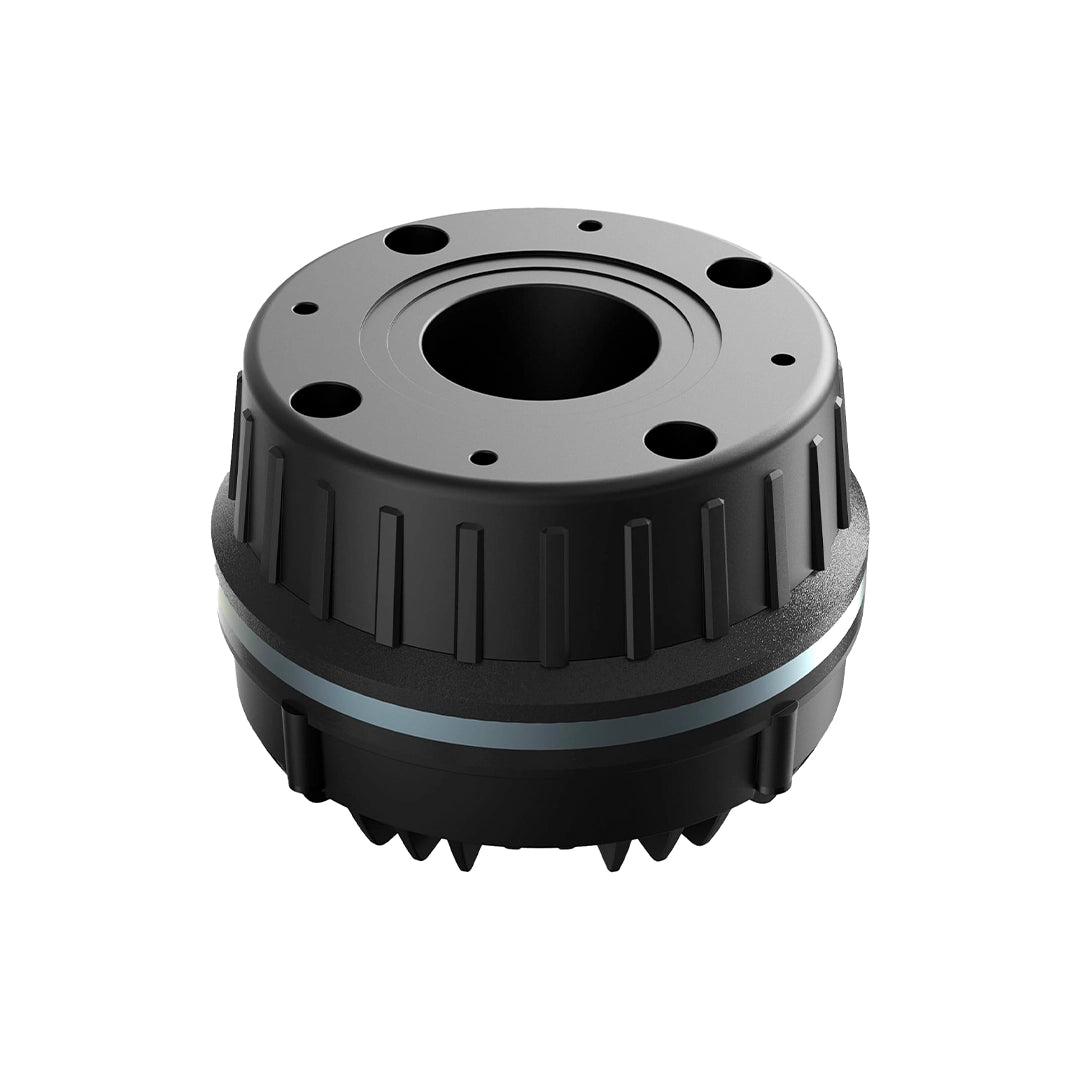

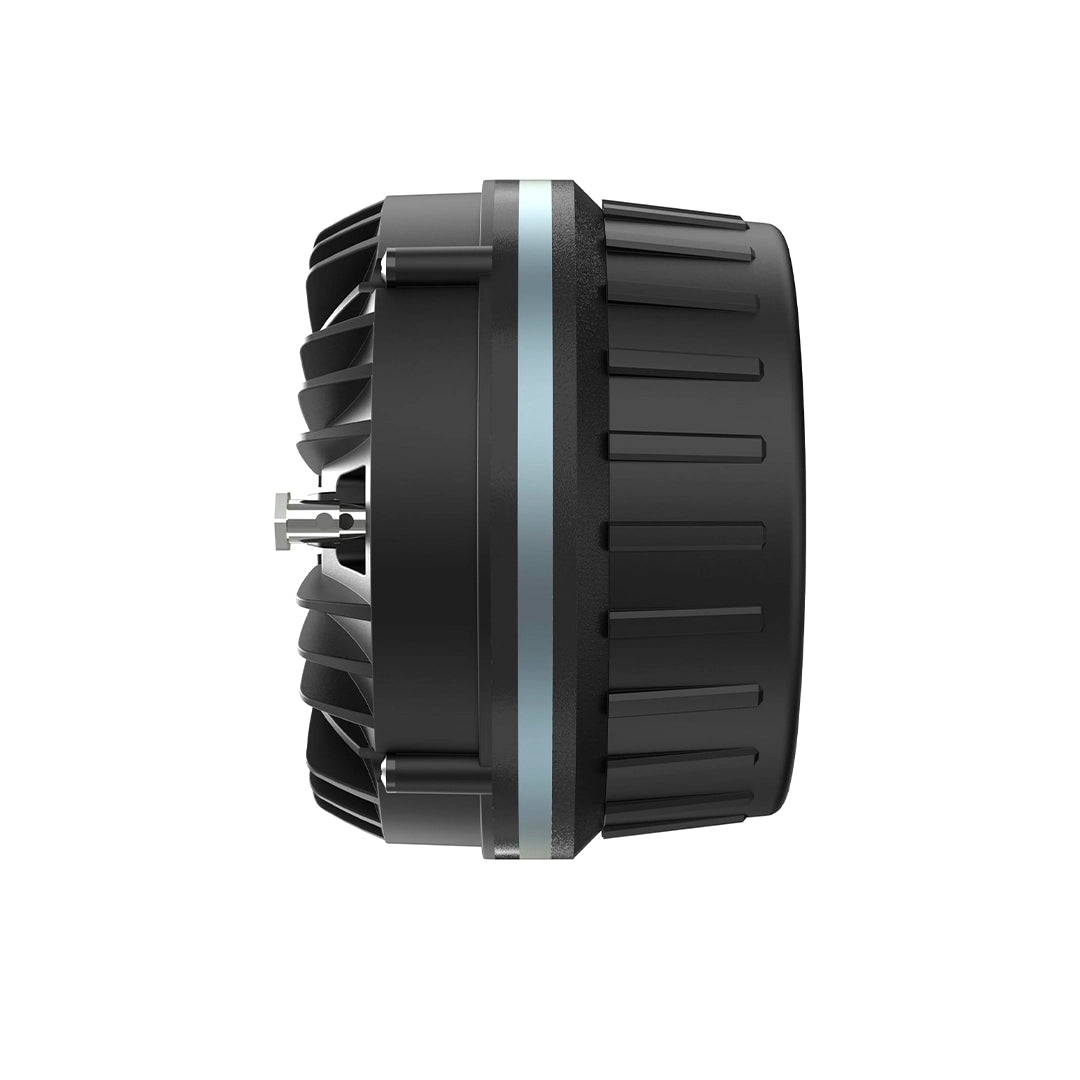

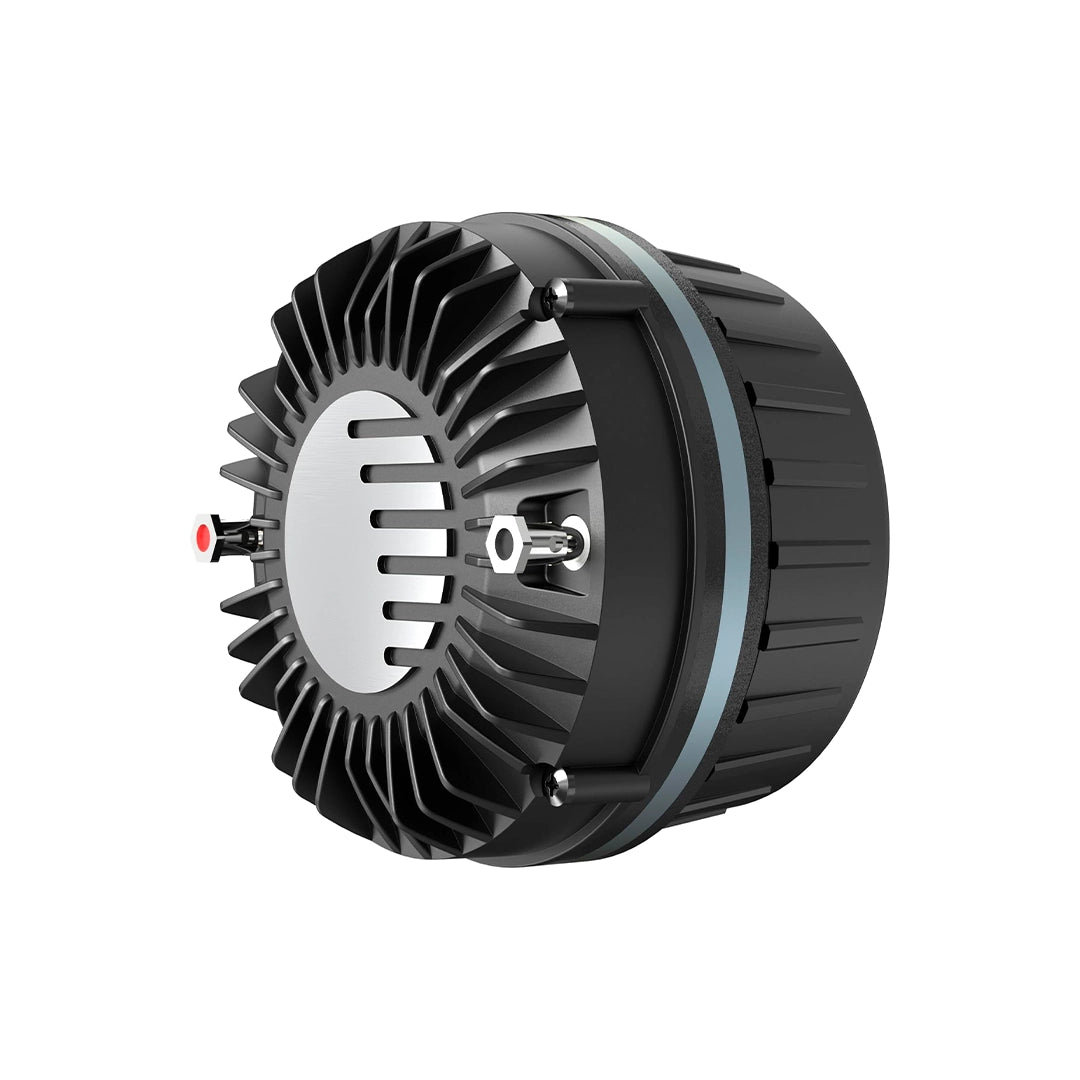

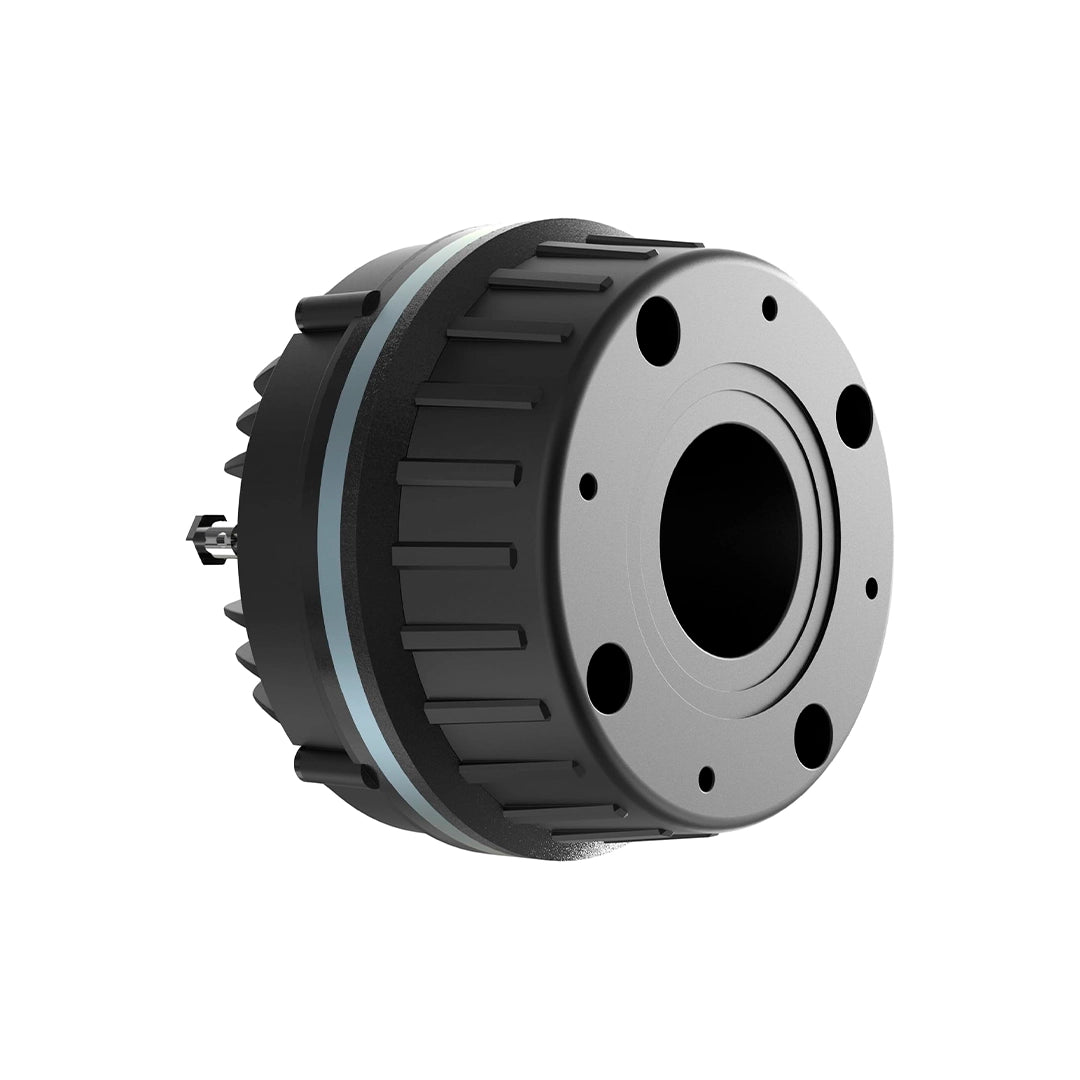

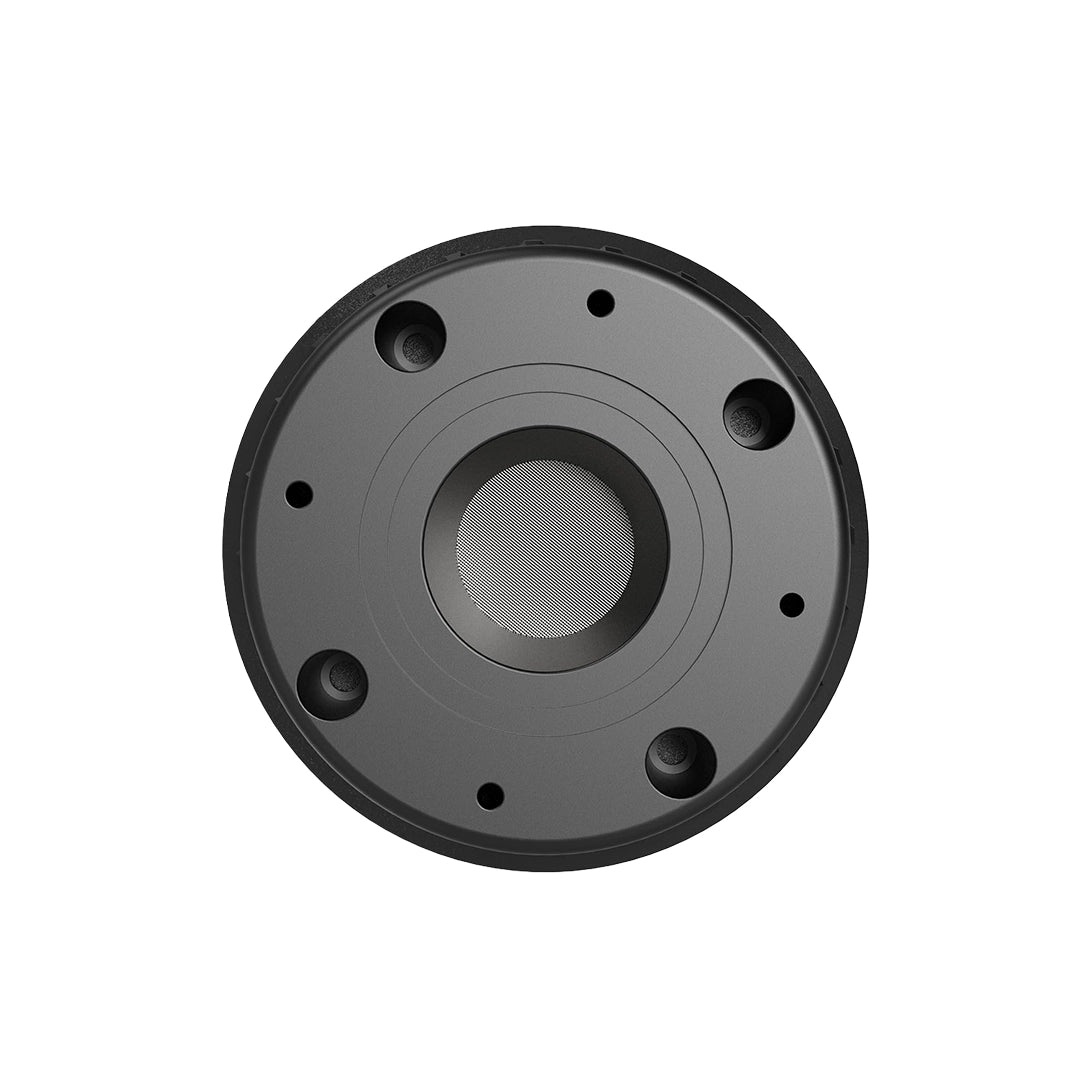

Orion HCCA400DR 4” High Performance Compression Driver – 500W RMS / 2000W Max, 8 Ohm

The Orion HCCA400DR 4” Compression Driver is engineered for extreme high-output car audio systems where maximum power, durability, and clarity are essential. As part of Orion’s legendary HCCA (High Current Competition Audio) lineup, this driver is built to deliver powerful high-frequency output for competition SPL systems, demo vehicles, and professional horn-loaded audio installations.

Rated at 500 watts RMS and 2000 watts maximum power, the HCCA400DR produces intense and controlled high-frequency projection capable of cutting through the loudest audio systems. Its high-efficiency design ensures maximum acoustic output while maintaining clarity and precision even in demanding high-power environments.

At the core of the driver is a massive 3.93-inch aluminum ribbon voice coil (ALR) combined with a titanium diaphragm, delivering exceptional thermal stability, durability, and accuracy at extreme output levels. These premium materials allow the driver to withstand extended high-power operation without compromising sound quality.

The driver is powered by a high-strength neodymium magnet motor structure, providing powerful magnetic force while maintaining a lighter overall weight compared to traditional ferrite designs. This advanced motor structure improves efficiency, transient response, and high-frequency projection for competition-grade performance.

Designed for horn-loaded systems, the HCCA400DR pairs perfectly with compatible Orion horn lenses such as the HA3.2R, making it ideal for SPL builds, demo vehicles, and professional high-output car audio systems.

• HCCA High Performance Compression Driver: Designed for extreme SPL and competition car audio systems.
• 4” Compression Driver Design: Built for powerful horn-loaded systems requiring maximum high-frequency output.
• 500W RMS / 2000W Max Power Handling: Delivers extreme high-frequency projection for the most demanding audio systems.
• Titanium Diaphragm Construction: Provides exceptional durability and precise high-frequency reproduction.
• 3.93” Aluminum Ribbon Voice Coil (ALR): High-temperature voice coil improves heat dissipation and long-term reliability.
• Neodymium Magnet Motor Structure: Provides powerful motor force with reduced weight and improved efficiency.
• Ultra-High Efficiency Output: Produces extremely loud and efficient highs with 113 dB sensitivity.
• Designed for Horn Systems: Ideal for pairing with Orion aluminum horn lenses in SPL and competition builds.

• Speaker Type: Compression Driver
• Driver Size: 4” Compression Driver
• Power Handling: 500W RMS / 2000W Max
• Impedance: 8 Ohms
• Voice Coil: 3.93” Aluminum Ribbon Voice Coil (ALR)
• Diaphragm Material: Titanium
• Magnet Type: Neodymium
• Sensitivity: 113 dB
• Frequency Response: 500 Hz – 18 kHz
• Mounting Type: Compression Driver Mount
• Application: SPL / Competition Car Audio Systems
• Package Quantity: Single Compression Driver (Horn Not Included)
