XTR-BP20 Bass Processor with 10V Output & Precision Bass Control

XTR-BP20 Bass Processor – Controlled and Powerful Bass Performance

Upgrade your car audio system with the XTR-BP20 Bass Processor. It restores and enhances low-frequency performance for better bass.

This processor recovers bass often lost in compressed music and factory systems. As a result, your subwoofer delivers deeper and tighter output. In addition, it improves clarity and control.

Precision Bass Tuning

The XTR-BP20 gives you full control over your bass response. Therefore, you can fine-tune your system to match your setup.

You can adjust:

• Sweep control to set the frequency center

• Width control to adjust the bandwidth

Because of this, you can choose deep, rolling bass or tight, punchy lows.

High-Output Performance

The processor offers selectable output levels of 2.5V, 5V, 7.5V, and 10V. As a result, it works with many types of amplifiers.

Moreover, it maintains clean performance with low distortion and strong signal clarity. Your bass stays powerful without unwanted noise.

Easy System Integration

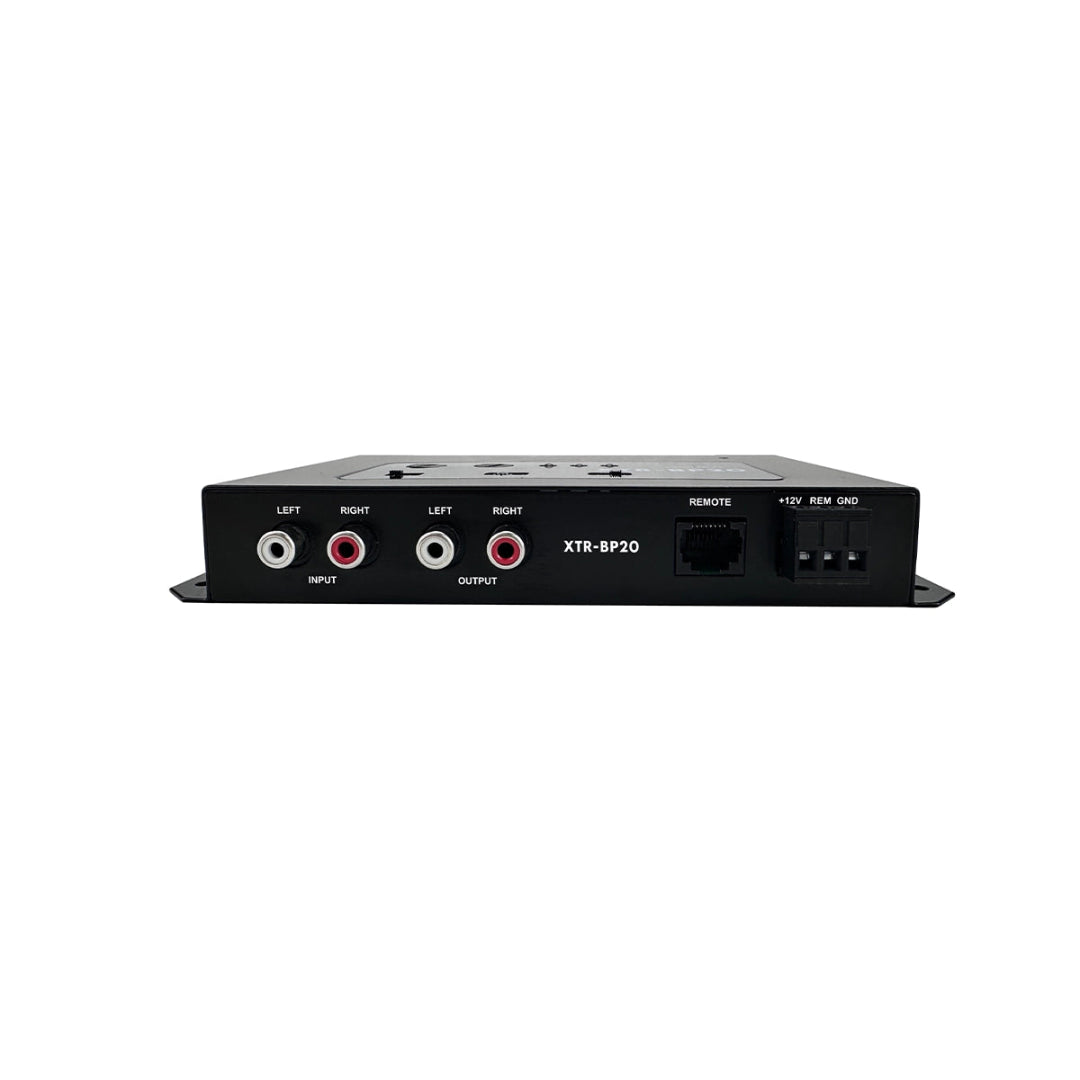

The XTR-BP20 is built for flexible installation. It supports both balanced and unbalanced inputs.

In addition, it includes ground isolation control and RCA connections. Therefore, it integrates easily with factory and aftermarket systems.

Built for Better Sound

Whether you upgrade a factory system or fine-tune a subwoofer setup, the XTR-BP20 delivers reliable results.

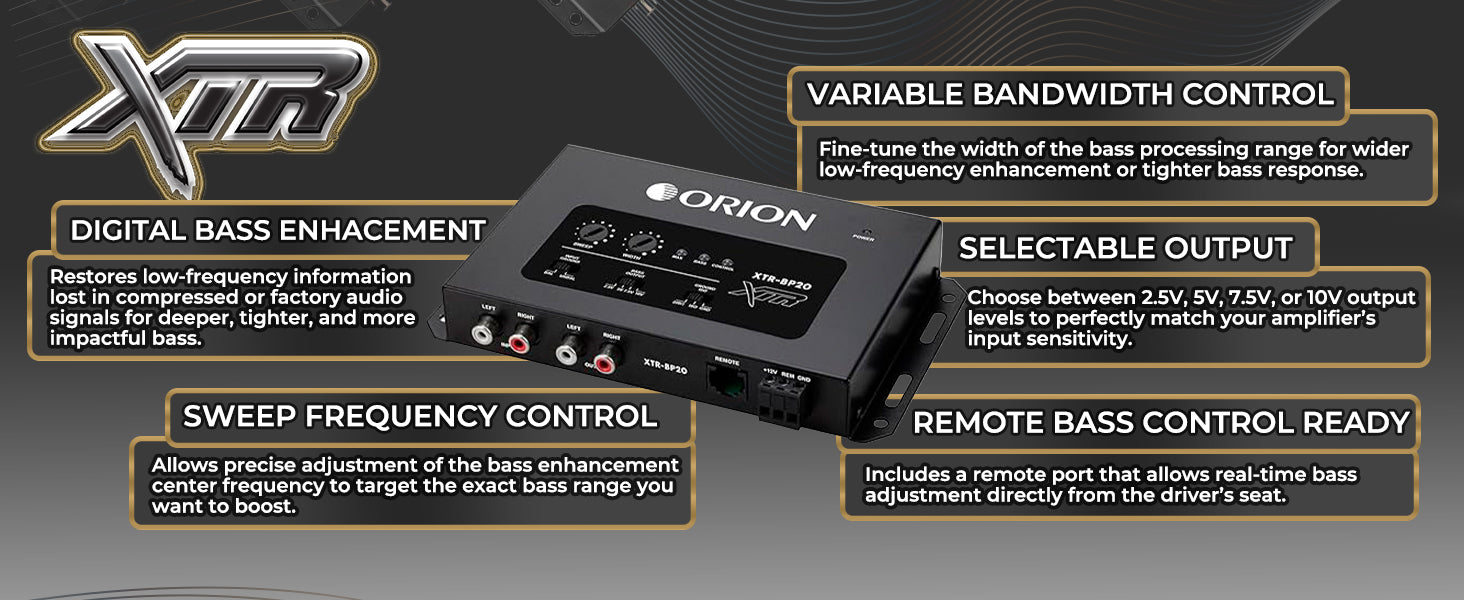

• XTR Performance Bass Processor: Designed to enhance low-frequency performance and deliver deeper, tighter bass for subwoofer systems.
• Bass Restoration Technology: Recovers bass frequencies lost in compressed music or factory audio systems.
• Sweep Frequency Control: Adjusts the center frequency of the bass enhancement for precise bass tuning.
• Width Bandwidth Control: Allows tuning of the bass restoration range for wider deep bass or tighter, punchy bass response.
• Selectable Output Voltage: Choose between 2.5V, 5V, 7.5V, or 10V output levels to match amplifier sensitivity and maximize signal strength.
• High Signal-to-Noise Performance: Provides clean bass enhancement with a signal-to-noise ratio greater than 110dB.
• Ultra-Low Distortion Processing: Maintains excellent audio clarity with less than 0.02% total harmonic distortion.
• Balanced / Unbalanced Input Selection: Ensures compatibility with both factory radios and aftermarket head units.
• Ground Isolation Control: Helps eliminate alternator noise and electrical interference.
• Remote Bass Control Support: Allows real-time bass adjustment from the driver’s seat using the remote bass knob.

• Power Supply: 6.5V – 18V
• Maximum Input Level: 10V
• Maximum Output Level: 10.5V
• Input Sensitivity: 10.5V
• Input Impedance: >50K Ohms
• Output Impedance: 100 Ohms
• EQ Boost / Cut: 15 dB
• Signal-to-Noise Ratio: >110 dB
• THD @ 2V Output: <0.02%
• Channel Separation: >80 dB
• CMRR: -70 dB Balanced / -29 dB Unbalanced
• Frequency Response: 10 Hz – 30 kHz
• Subsonic Filter: 31 Hz – 71 Hz
• Current Draw: 180 mA
• Interchannel Gain Tracking: 0.1 dB
• Fuse Rating: 1A

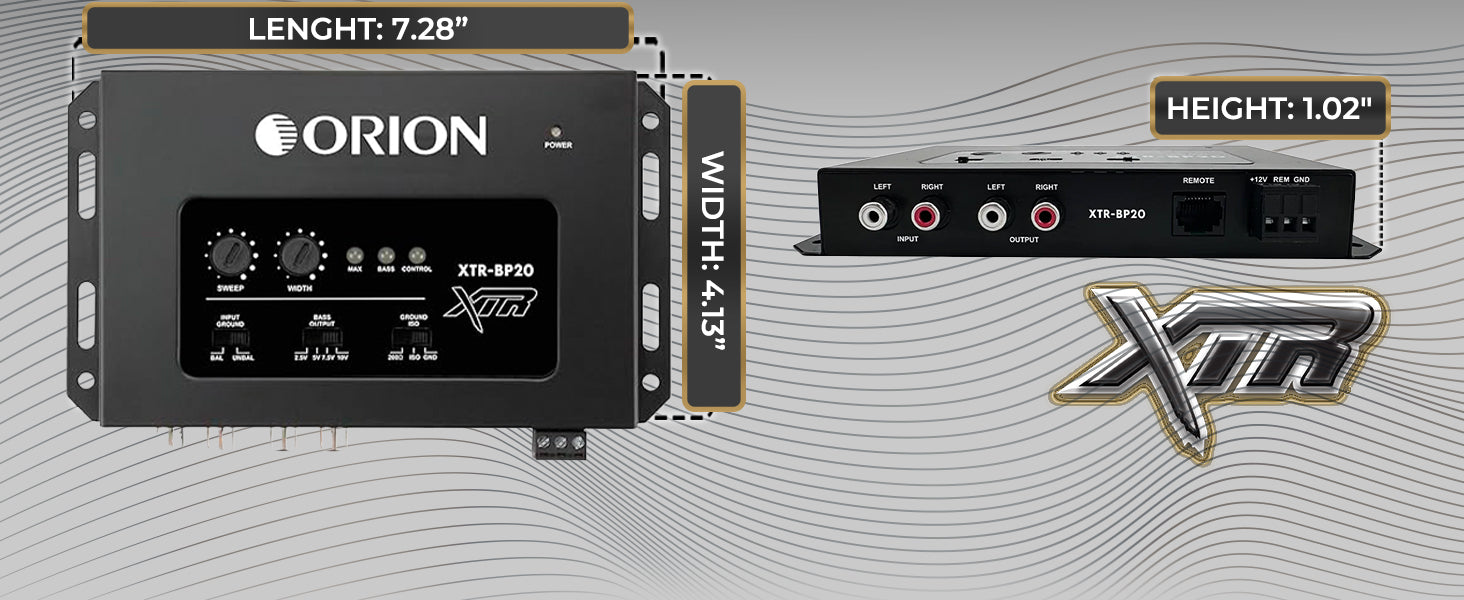

• Dimensions: 7.28” x 4.13” x 1.02”
