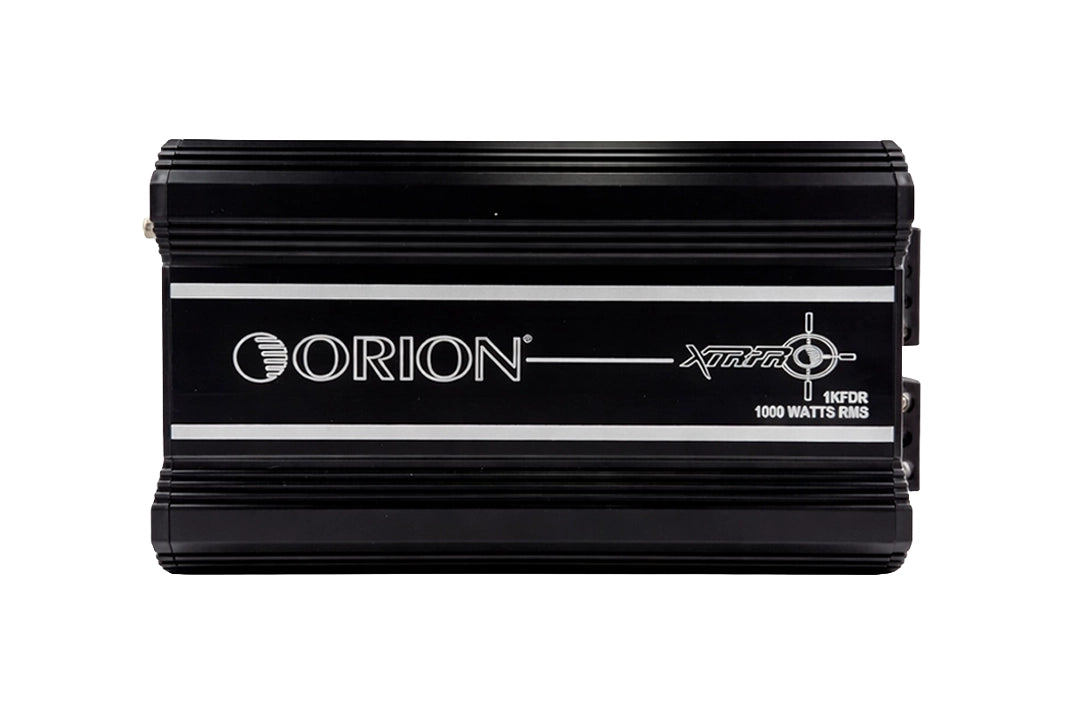

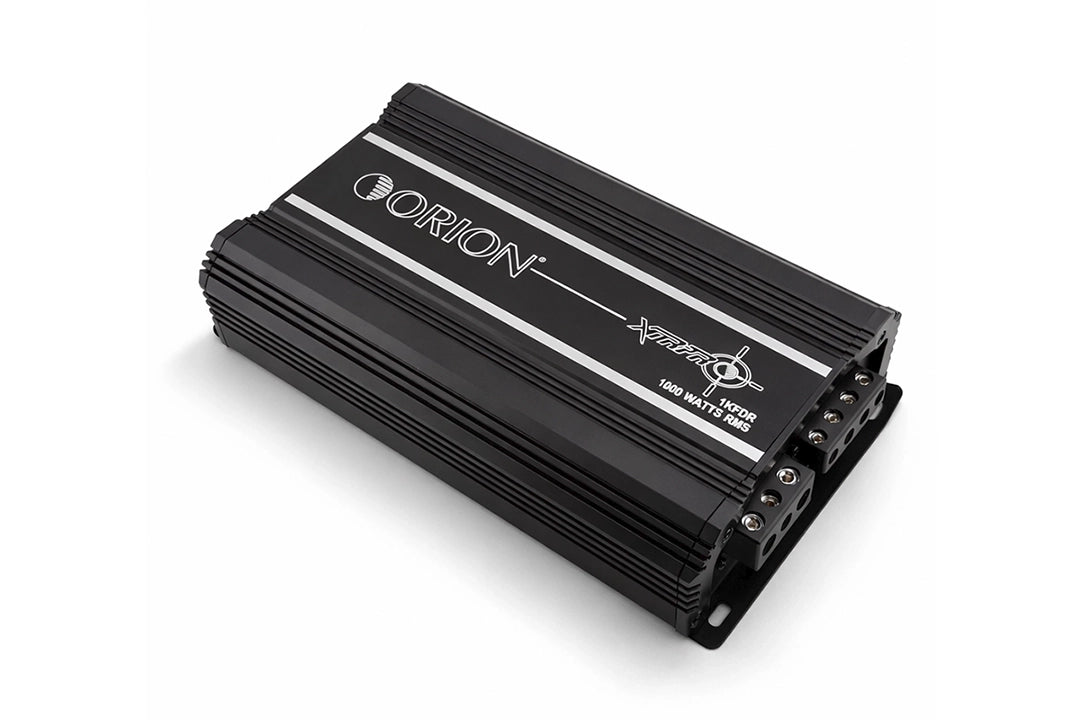

Orion XTRPRO1K Class-D Monoblock Amplifier – 1000W Max Power, 1, 2, 4-Ohms Stable

The Orion XTRPRO1K is a high-performance Class-D monoblock amplifier designed for subwoofer systems that demand strong, precise bass with efficient power delivery. Delivering up to 1000 watts at 1, 2, 4-ohms, this amplifier is built for enthusiasts seeking impactful low-end response without compromising control or efficiency.

Part of the Orion XTR PRO competition-grade lineup, the XTRPRO1K features advanced tuning capabilities including variable low pass filter, high pass filter, bass boost and remote gain compatibility, allowing users to fine-tune their system for optimal performance.

With its compact footprint and efficient Class-D architecture, this amplifier is ideal for both daily driver setups and performance-oriented audio systems.

• High-Efficiency Class-D Power Design: The XTRPRO1K utilizes advanced Class-D amplifier technology to deliver strong, efficient output with minimal heat generation. This design allows the amplifier to produce powerful bass while maintaining excellent electrical efficiency and long-term reliability.
• Optimized for Subwoofer Performance: Delivering up to 1000 watts at 1, 2, 4-ohms, the XTRPRO1K is engineered specifically for subwoofer applications. It provides the current and stability required to drive high-performance woofers with tight, controlled low-frequency output.

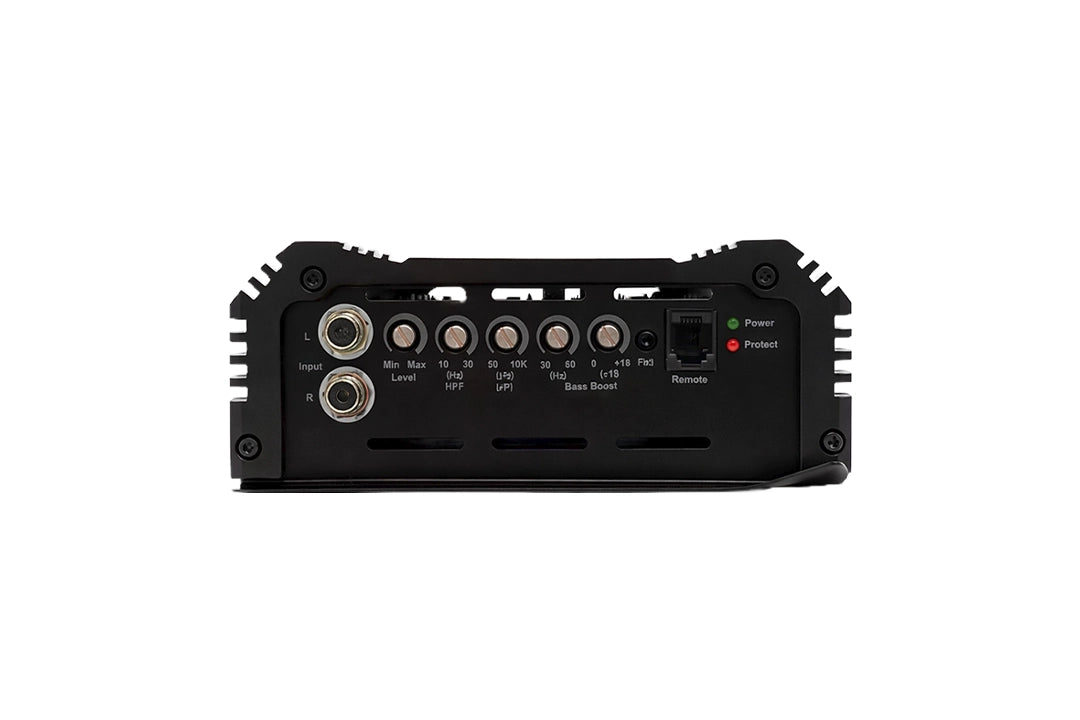

• Advanced Sound Tuning Controls: Equipped with adjustable low-pass and high-pass filters, along with a 12dB variable bass boost, this amplifier allows installers and enthusiasts to fine-tune the bass response for different subwoofer setups and listening preferences.

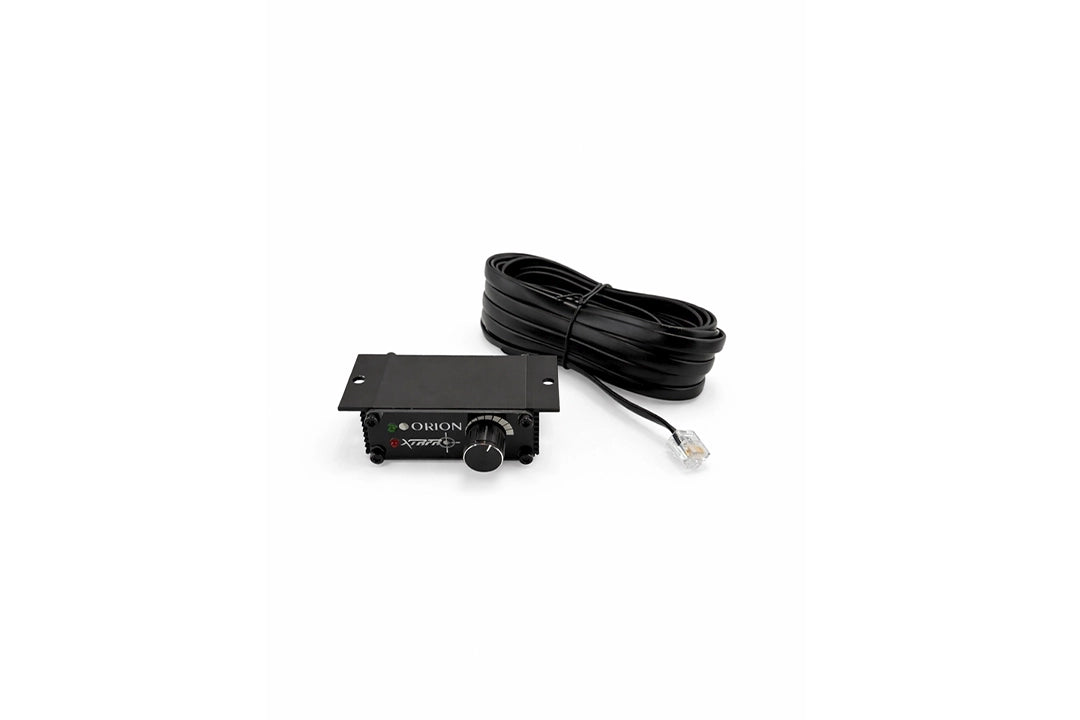

• Remote Bass Level Compatibility: The XTRPRO1K supports remote gain control, allowing users to conveniently adjust subwoofer output from the driver’s seat. This makes it easy to adapt bass levels for different music styles or driving environments.
• Compact Competition-Ready Chassis: Designed with a compact footprint, the amplifier fits easily into a wide range of installations while maintaining the rugged construction expected from Orion’s XTR PRO lineup.

• -RMS Power @ 4 Ohms: 650W x 1CH
• -RMS Power @ 2 Ohms: 1100W x 1CH
• -RMS Power @ 1 Ohm: 1300W x 1CH

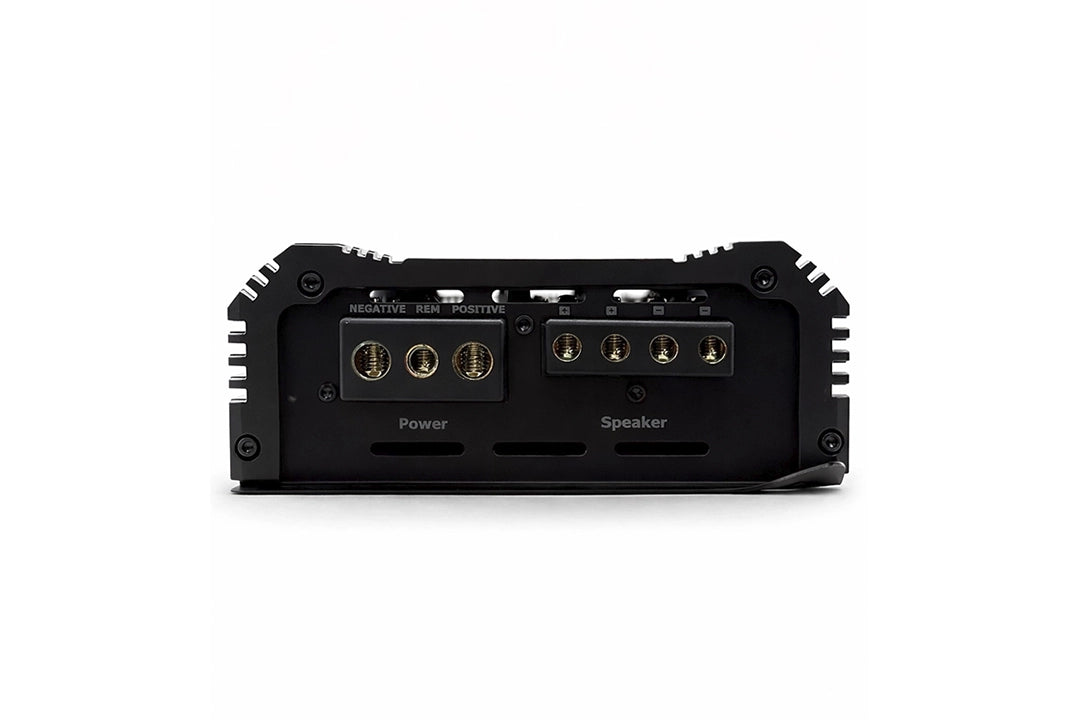

• POWER TERMINAL MANAGEMENT
• Positive Terminals: 1 x 4 AWG.
• Negative Terminals: 1 x 4 AWG.
• Remote Turn-ON Signal: 10 AWG.
• Speaker Output Terminals: 8 AWG.

• IntelliTech Full-Range Class D Design
• 1-Ohm Stable Operation
• Frequency Response: 10Hz - 20Hz
• High-Pass Filter: 10Hz – 30Hz
• Low-Pass Filter: 50Hz – 10kHz
• Bass Boost: 0 – 12dB
• Gain Control: 200mV – 6V
• Signal-to-Noise Ratio: >94dB
• Damping Factor: >100
• Remote Gain Controller Compatible
• Thermal and Short Circuit Protection
• Heavy-Duty Power & Speaker Terminals

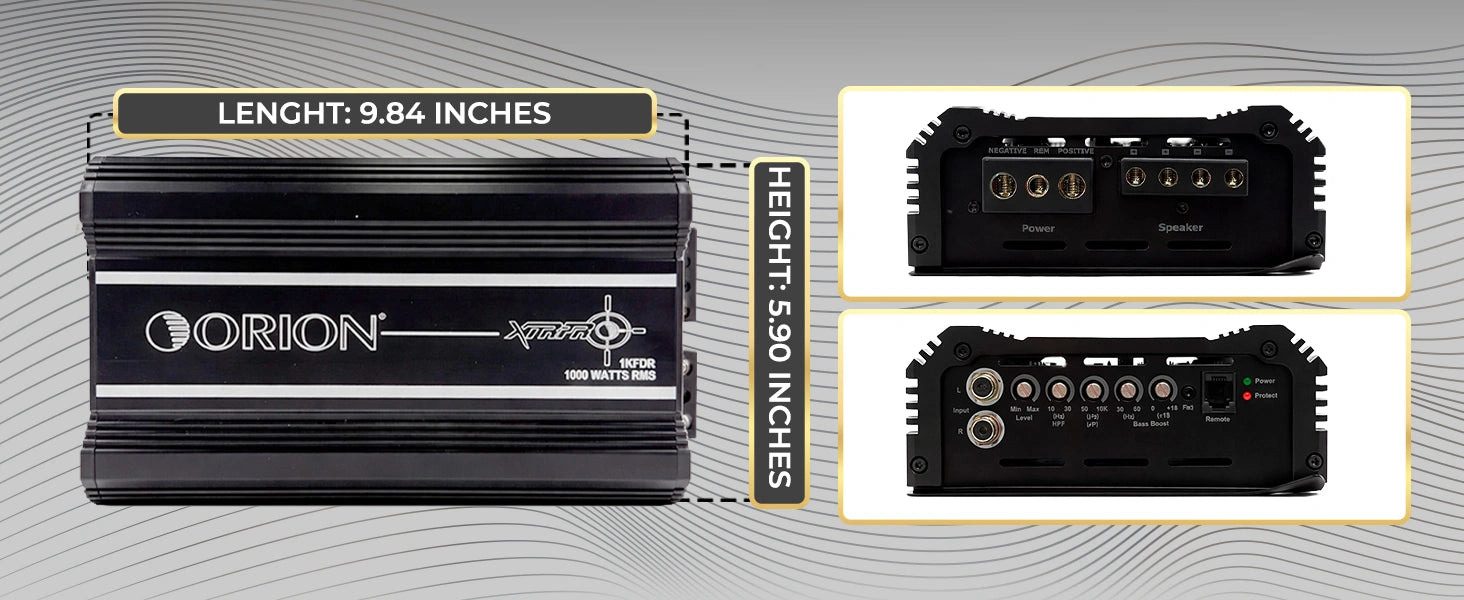

• 9.84” x 5.90” x 2.16” (250mm x 150mm x 55mm)
